Volume pricing
- 1+ pcs$748.47
- 10+ pcs$706.10
- 100+ pcs$666.13
- 500+ pcs$628.43
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Turn On Time
- 530 ns
- Igbt Type
- Trench Field Stop
- Terminal Formu
- UNSPECIFIED
- Currentcollector Ic Max
- 300A
- Yüzey Montaj
- NO
- Ntc Thermistor
- No
- Jesd30 Code
- R-PUFM-X14
- Number Of Elements
- 2
- Transistor Application
- POWER CONTROL
- Çalışma Sıcaklığı
- -40°C~125°C
- Terminal Pozisyonu
- UPPER
- Terminal Sayısı
- 14
- Case Connection
- ISOLATED
- Current Collector Cutoff Max
- 5mA
- Kılıf / Paket
- Module
- ECCN Kodu
- EAR99
- Voltage Collector Emitter Breakdown Max
- 1200V

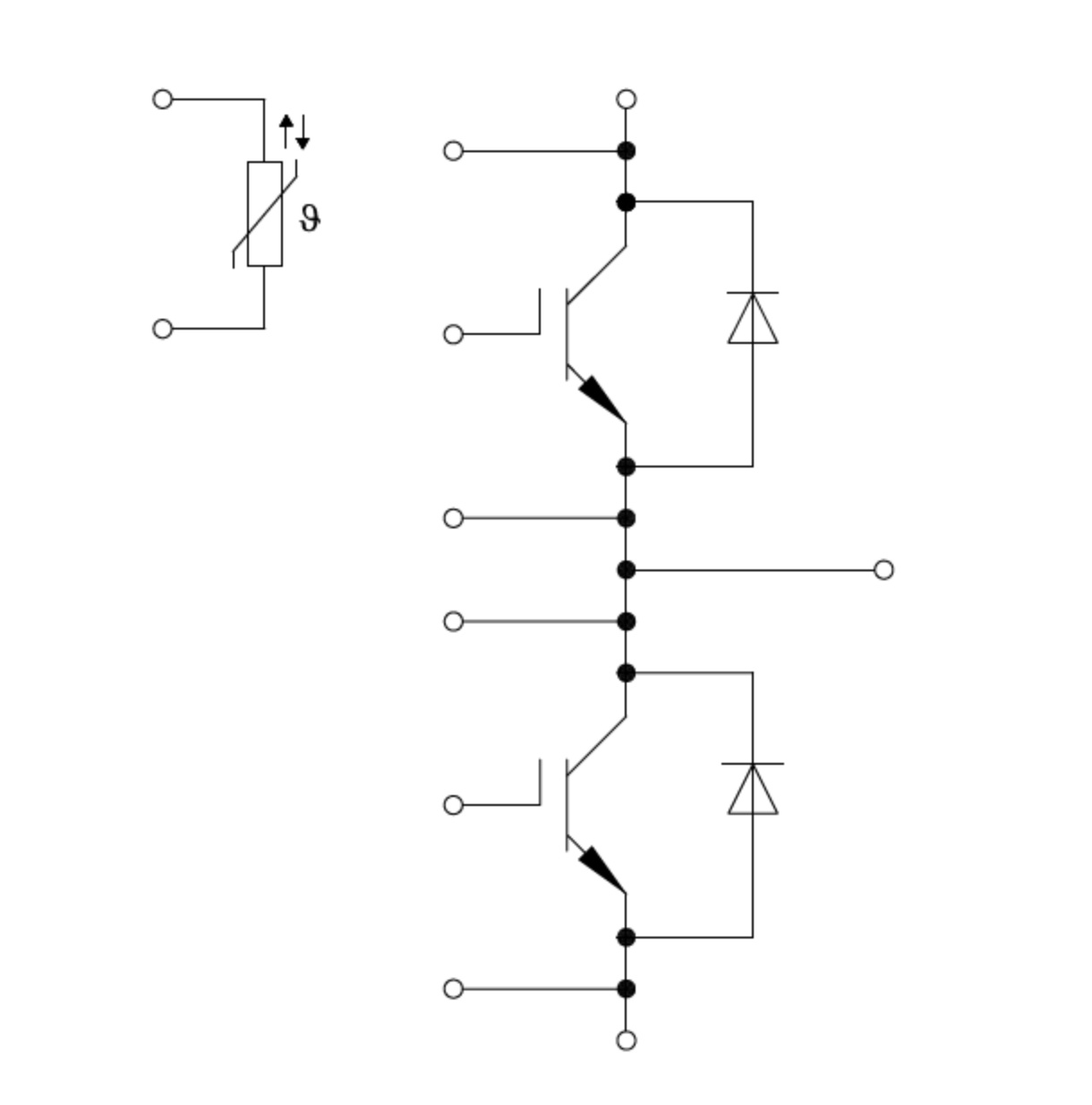

- Configuration
- Half Bridge Inverter
- Turn Off Timenom Toff
- 1060 ns
- Parça Durumu
- Active
- RoHS Durumu
- ROHS3 Compliant
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Transistor Element Material
- SILICON
- Vceon Max Vge Ic
- 2.15V @ 15V, 300A
- Yayın Yılı
- 2002
- Input
- Standard
- Montaj Tipi
- Chassis Mount
- Polaritychannel Type
- N-CHANNEL
- Seri
- PrimePACK™3+
- Input Capacitance Cies Vce
- 21nF @ 25V
