Specifications
- Igbt Type
- Trench Field Stop
- Turn On Time
- 460 ns
- Terminal Formu
- UNSPECIFIED
- Yüzey Montaj
- NO
- Jesd30 Code
- R-PUFM-X10
- Ntc Thermistor
- Yes
- Currentcollector Ic Max
- 1200A
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Terminal Pozisyonu
- UPPER
- Terminal Sayısı
- 10
- Çalışma Sıcaklığı
- -40°C~175°C TJ
- Transistor Application
- POWER CONTROL
- Number Of Elements
- 2
- Current Collector Cutoff Max
- 5mA
- Case Connection
- ISOLATED
- Turn Off Timenom Toff
- 970 ns
- Voltage Collector Emitter Breakdown Max
- 1700V

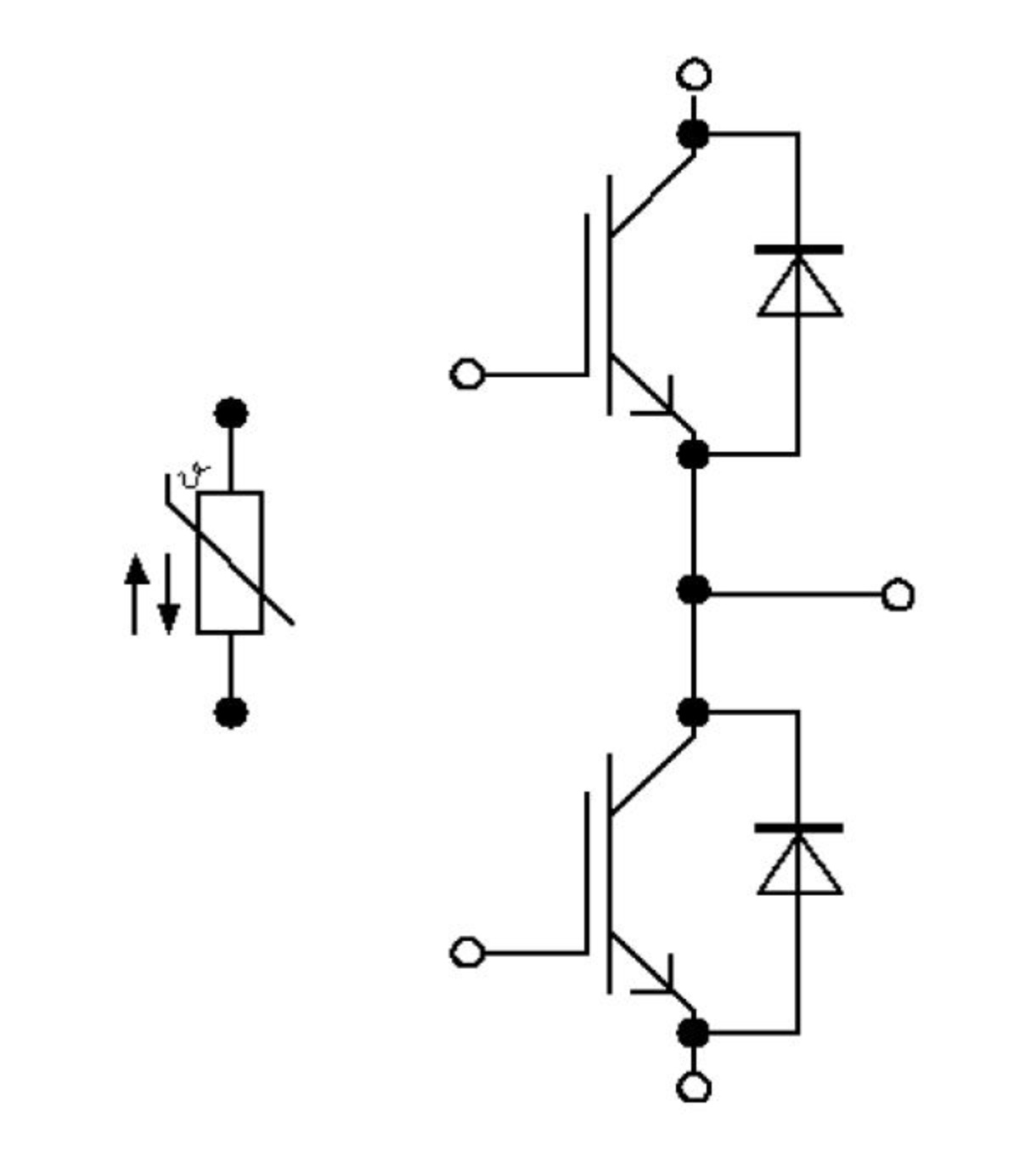

- Configuration
- Half Bridge
- ECCN Kodu
- EAR99
- Kılıf / Paket
- Module
- Transistor Element Material
- SILICON
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- RoHS Durumu
- ROHS3 Compliant
- Power Max
- 20mW
- Parça Durumu
- Active
- Input
- Standard
- Vceon Max Vge Ic
- 2.3V @ 15V, 1200A
- Yayın Yılı
- 2002
- Polaritychannel Type
- N-CHANNEL
- Seri
- PrimePack™2
- Input Capacitance Cies Vce
- 68nF @ 25V
- Montaj Tipi
- Chassis Mount
