Volume pricing
- 1+ pcs$99.26
- 10+ pcs$93.64
- 100+ pcs$88.34
- 500+ pcs$83.34
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Collectoremitter Saturation Voltage
- 2.15V
- Pin Sayısı
- 5
- Turn Off Timenom Toff
- 490 ns

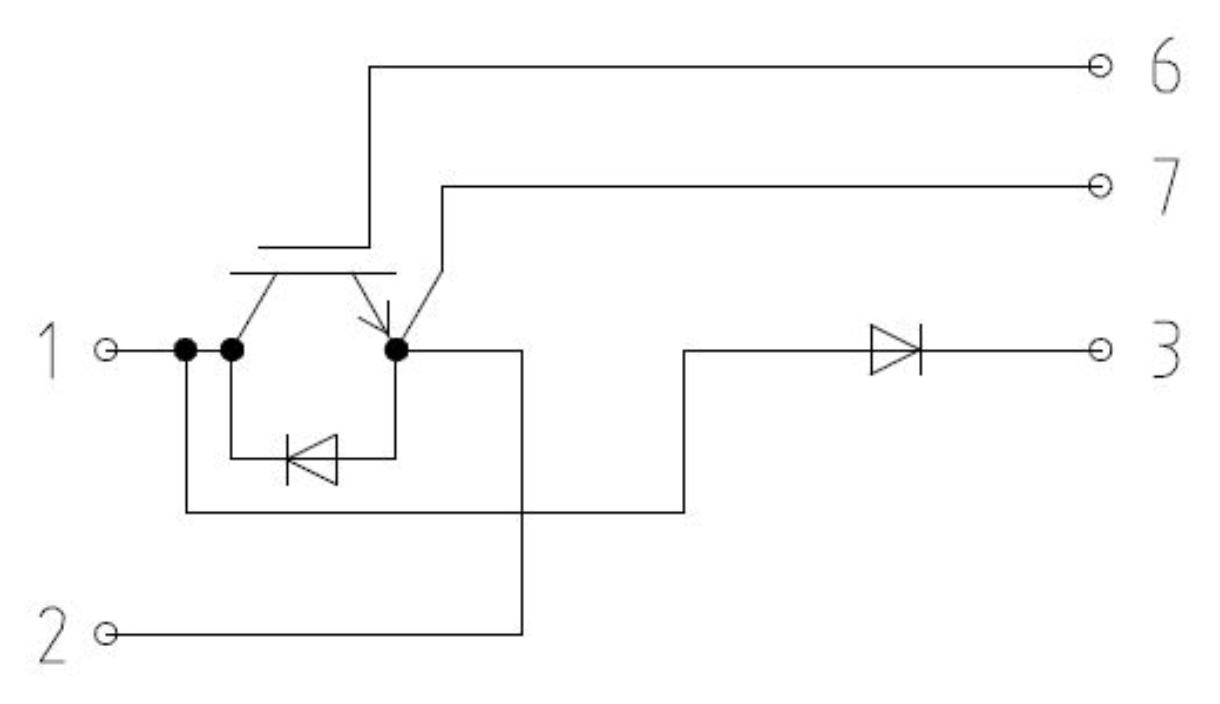

- Configuration
- Single Chopper
- Voltage Collector Emitter Breakdown Max
- 1200V
- Seri
- C
- Reach Svhc
- No SVHC
- Input
- Standard
- Kılıf / Paket
- Module
- Terminal Sayısı
- 4
- Kurşunsuz
- Lead Free
- Case Connection
- ISOLATED
- Vceon Max Vge Ic
- 2.15V @ 15V, 150A
- Current Collector Cutoff Max
- 1mA
- Ntc Thermistor
- No
- RoHS Durumu
- ROHS3 Compliant
- Pin Sayısı
- 7
- Halogen Free
- Not Halogen Free
- Turn On Time
- 185 ns
- Montaj
- Screw
- Collectoremitter Breakdown Voltage
- 1.2kV
- Montaj Tipi
- Chassis Mount
- Yayın Yılı
- 2002
- Max Power Dissipation
- 790W
- Jesd30 Code
- R-XUFM-X4
- Collector Emitter Voltage Vceo
- 1.2kV
- Element Configuration
- Single
- Kurşunsuz Kodu
- no
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Input Capacitance Cies Vce
- 9.3nF @ 25V
- Igbt Type
- Trench Field Stop
- Power Dissipation
- 790W
- Number Of Elements
- 1
- Max Collector Current
- 150A
- ECCN Kodu
- EAR99
- Çalışma Sıcaklığı
- -40°C~150°C TJ
- Parça Durumu
- Active
- Terminal Pozisyonu
- UPPER
