Volume pricing
- 1+ pcs$152.42
- 10+ pcs$143.79
- 100+ pcs$135.65
- 500+ pcs$127.97
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Currentcollector Ic Max
- 230A
- Input
- Standard
- Number Of Elements
- 4
- Transistor Element Material
- SILICON
- Polaritychannel Type
- N-CHANNEL

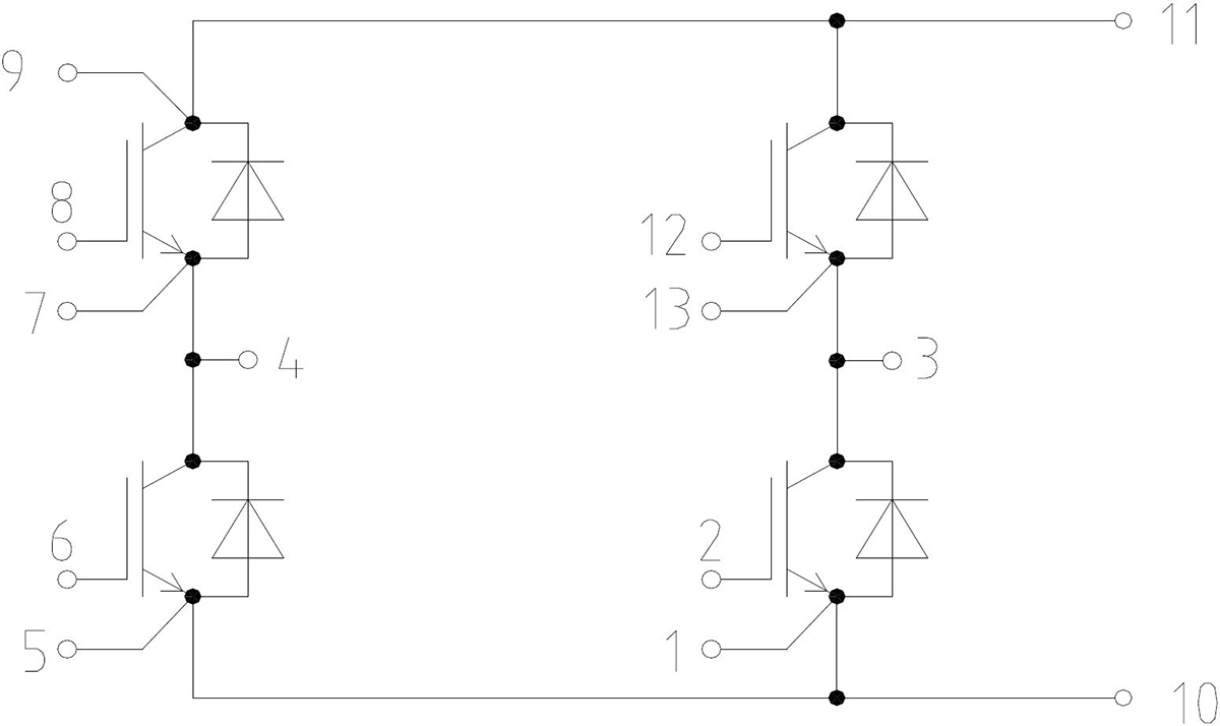

- Configuration
- Full Bridge
- Voltage Collector Emitter Breakdown Max
- 1700V
- Vceon Max Vge Ic
- 2.3V @ 15V, 150A
- Seri
- EconoDUAL™ 3
- Input Capacitance Cies Vce
- 12nF @ 25V
- Montaj Tipi
- Chassis Mount
- Kılıf / Paket
- Module
- Turn Off Timenom Toff
- 780 ns
- Terminal Pozisyonu
- UPPER
- Current Collector Cutoff Max
- 3mA
- Case Connection
- ISOLATED
- Igbt Type
- Trench Field Stop
- Turn On Time
- 270 ns
- Ntc Thermistor
- No
- Yayın Yılı
- 2002
- Fabrika Tedarik Süresi
- 16 Weeks
- ECCN Kodu
- EAR99
- Additional Feature
- UL RECOGNIZED
- RoHS Durumu
- ROHS3 Compliant
- Transistor Application
- POWER CONTROL
- Yüzey Montaj
- NO
- Parça Durumu
- Active
- Jesd30 Code
- R-XUFM-X13
- Terminal Sayısı
- 13
- Çalışma Sıcaklığı
- -40°C~150°C
- Terminal Formu
- UNSPECIFIED
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
