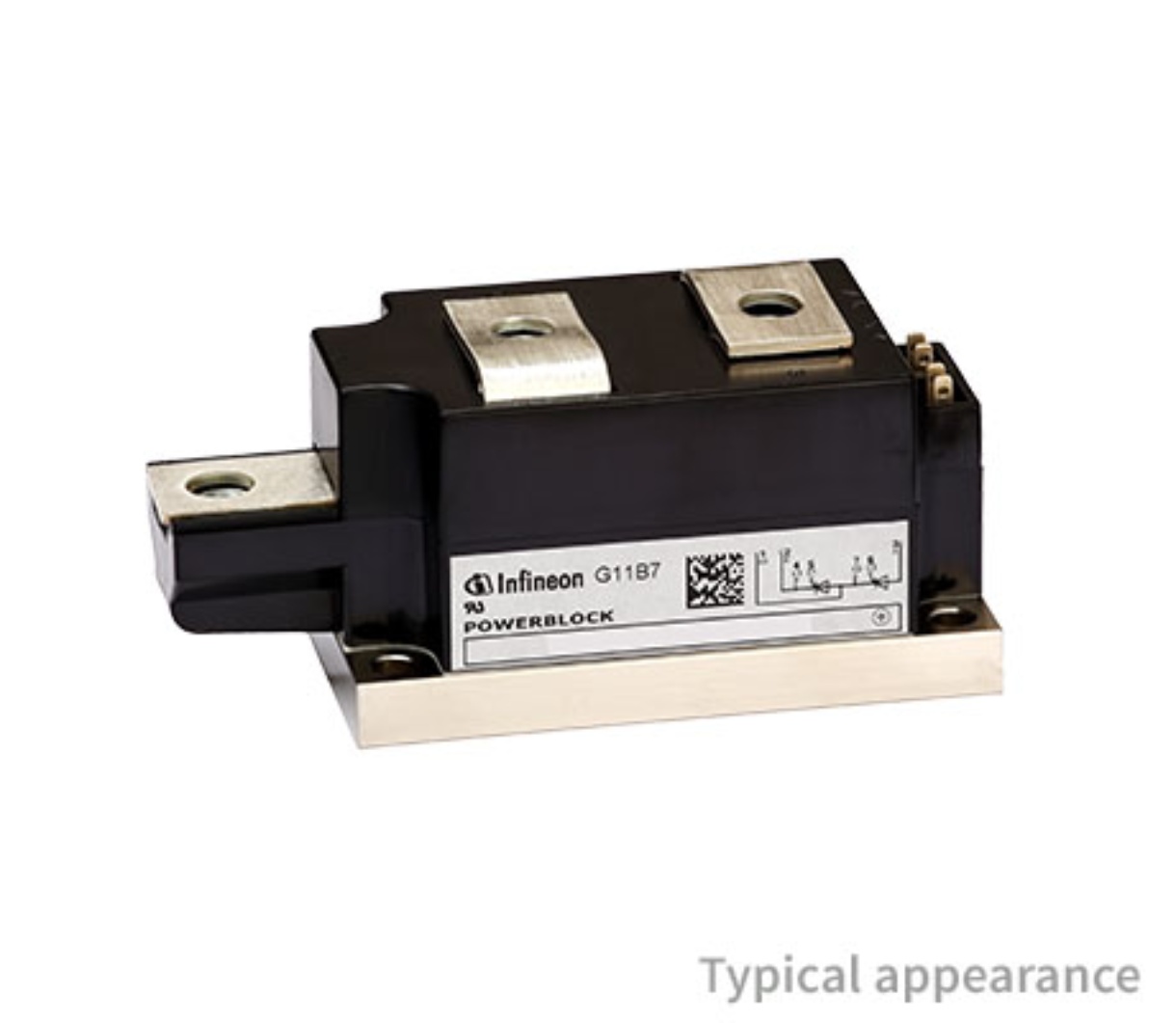

DT250N16KOFHPSA1

Specifications

Current Hold Ih Max

300mA

Parça Durumu

Obsolete

Çalışma Sıcaklığı

-40°C~125°C

Number Of Scrsdiodes

2 SCRs

Current Gate Trigger Igt Max

200mA

Yayın Yılı

2012

Repetitive Peak Reverse Voltage

1600V

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Voltage Gate Trigger Vgt Max

2V

Repetitive Peak Offstate Voltage

1600V

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

Not Applicable

Terminal Sayısı

5

Current On State It Av Max

250A

Voltageoff State

1.6kV

Case Connection

ISOLATED

Kılıf / Paket

Module

Number Of Elements

1

RoHS Durumu

RoHS Compliant

HTS Kodu

8541.30.00.80

Structure

Series Connection - All SCRs

Other Names

DT250N16KOF DT250N16KOF-ND SP000096844

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Additional Feature

HIGH RELIABILITY, UL RECOGNIZED

REACH Uyumluluk Kodu

compliant

Terminal Pozisyonu

UPPER

Configuration

SINGLE WITH BUILT-IN DIODE

Montaj Tipi

Chassis Mount

Terminal Formu

UNSPECIFIED

Rms Onstate Currentmax

410A

Current Non Rep Surge5060hz Itsm

8000A @ 50Hz

Trigger Device Type

SCR

ECCN Kodu

EAR99

Jesd30 Code

R-PUFM-X5

Yüzey Montaj

NO

Reference Standard

IEC-747-6
