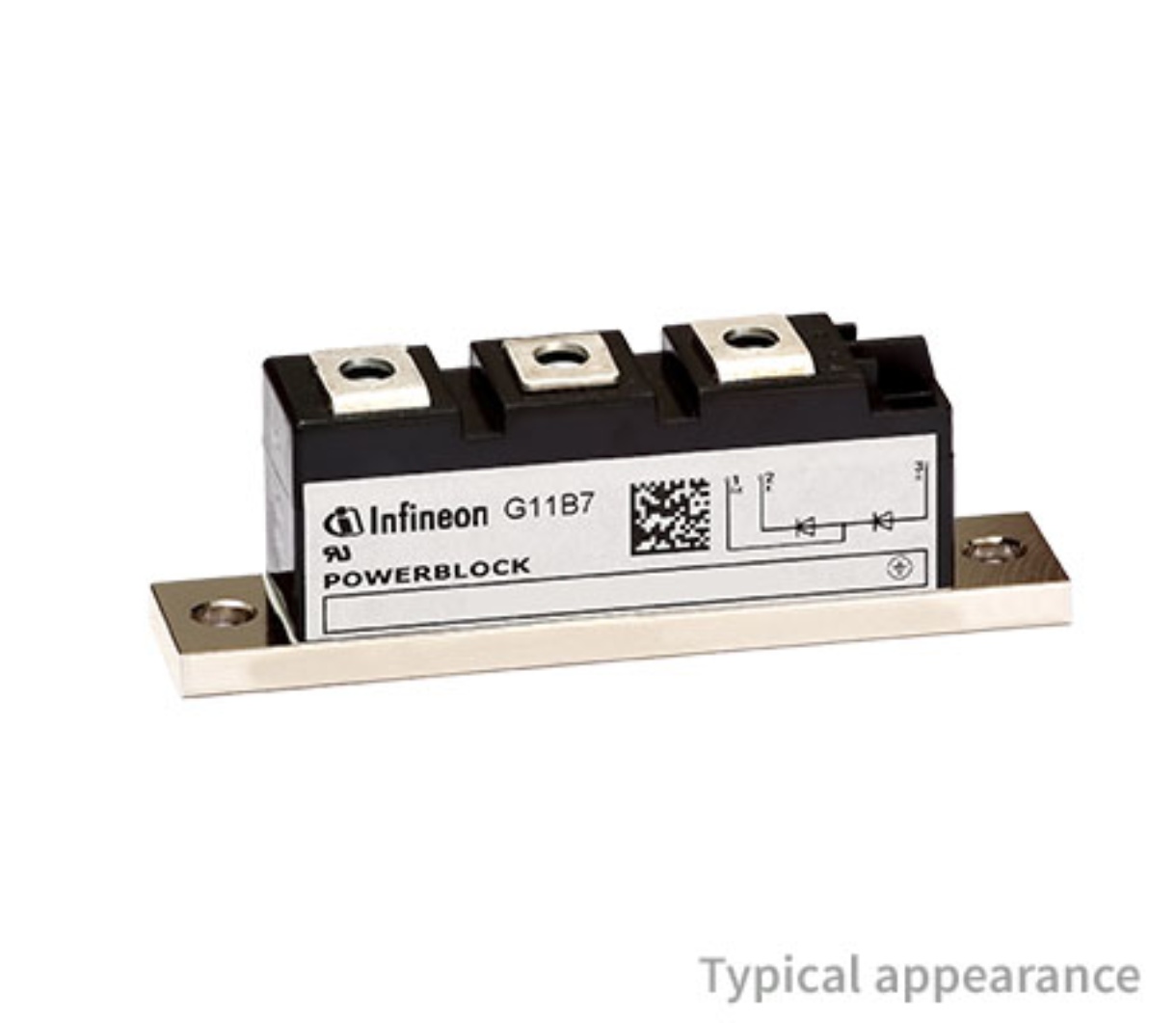

DD98N25KHPSA1

Specifications

Operating Temperature Max

150°C

Diode Element Material

SILICON

Jesd30 Code

R-XUFM-X3

Kurşunsuz

Lead Free

Operating Temperature Junction

-40°C~150°C

Yayın Yılı

2003

Reach Svhc

No SVHC

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Number Of Phases

1

Forward Current

98A

Case Connection

ISOLATED

Speed

Standard Recovery >500ns, > 200mA (Io)

RoHS Durumu

RoHS Compliant

Voltage Dc Reverse Vr Max

2500V

Ambalaj

Bulk

Parça Durumu

Active

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Current Reverse Leakage Vr

25mA @ 2500V

Montaj Tipi

Chassis Mount

Diode Type

Standard

Max Repetitive Reverse Voltage Vrrm

2.5kV

Yüzey Montaj

NO

Terminal Pozisyonu

UPPER

Additional Feature

UL RECOGNIZED

Terminal Sayısı

3

Voltage Forward Vf Max If

1.53V @ 300A

Kılıf / Paket

Module

Applications

GENERAL PURPOSE

Number Of Elements

2

Rep Pk Reverse Voltagemax

2500V

Nem Hassasiyeti (MSL)

Not Applicable

Halogen Free

Not Halogen Free

Terminal Formu

UNSPECIFIED

HTS Kodu

8541.10.00.80

Fabrika Tedarik Süresi

8 Weeks

Diode Configuration

1 Pair Series Connection

ECCN Kodu

EAR99

Max Forward Surge Current Ifsm

2kA
