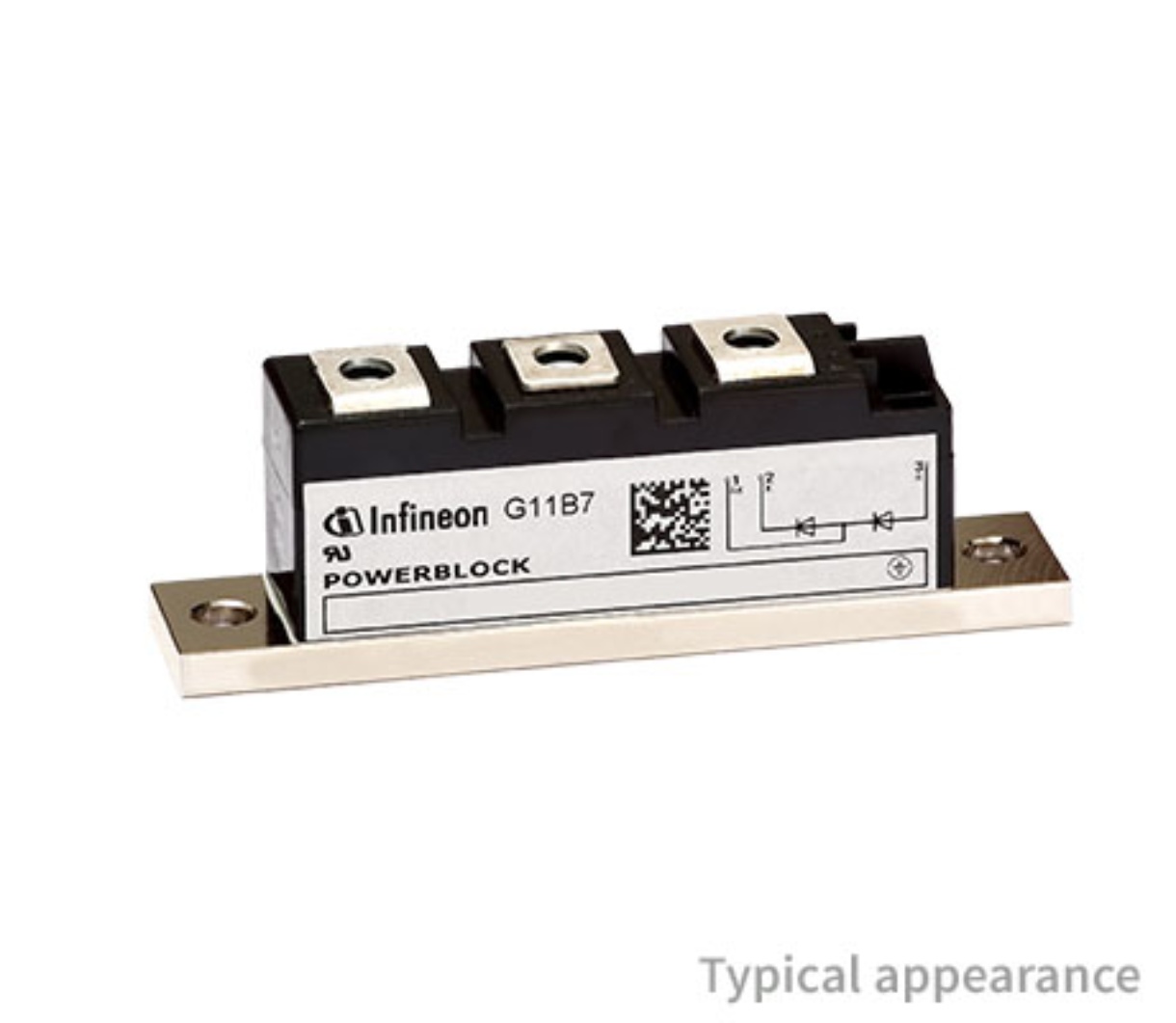

DD89N18KHPSA1

Specifications

Number Of Elements

2

Applications

GENERAL PURPOSE

Kılıf / Paket

Module

Nonrep Pk Forward Currentmax

2400A

Voltage Forward Vf Max If

1.5V @ 300A

Additional Feature

UL RECOGNIZED

Terminal Sayısı

3

Terminal Pozisyonu

UPPER

Yüzey Montaj

NO

Diode Type

Standard

ECCN Kodu

EAR99

Diode Configuration

1 Pair Common Cathode

Fabrika Tedarik Süresi

8 Weeks

HTS Kodu

8541.10.00.80

Terminal Formu

UNSPECIFIED

Nem Hassasiyeti (MSL)

Not Applicable

Rep Pk Reverse Voltagemax

1800V

Output Currentmax

89A

Yayın Yılı

2003

Operating Temperature Junction

-40°C~150°C

Jesd30 Code

R-XUFM-X3

Diode Element Material

SILICON

Operating Temperature Max

150°C

Current Average Rectified Io

89A

Current Reverse Leakage Vr

20mA @ 1800V

Montaj Tipi

Chassis Mount

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Ambalaj

Bulk

Parça Durumu

Active

Voltage Dc Reverse Vr Max

1800V

RoHS Durumu

RoHS Compliant

Speed

Standard Recovery >500ns, > 200mA (Io)

Number Of Phases

1

Case Connection

ISOLATED

REACH Uyumluluk Kodu

compliant

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED
