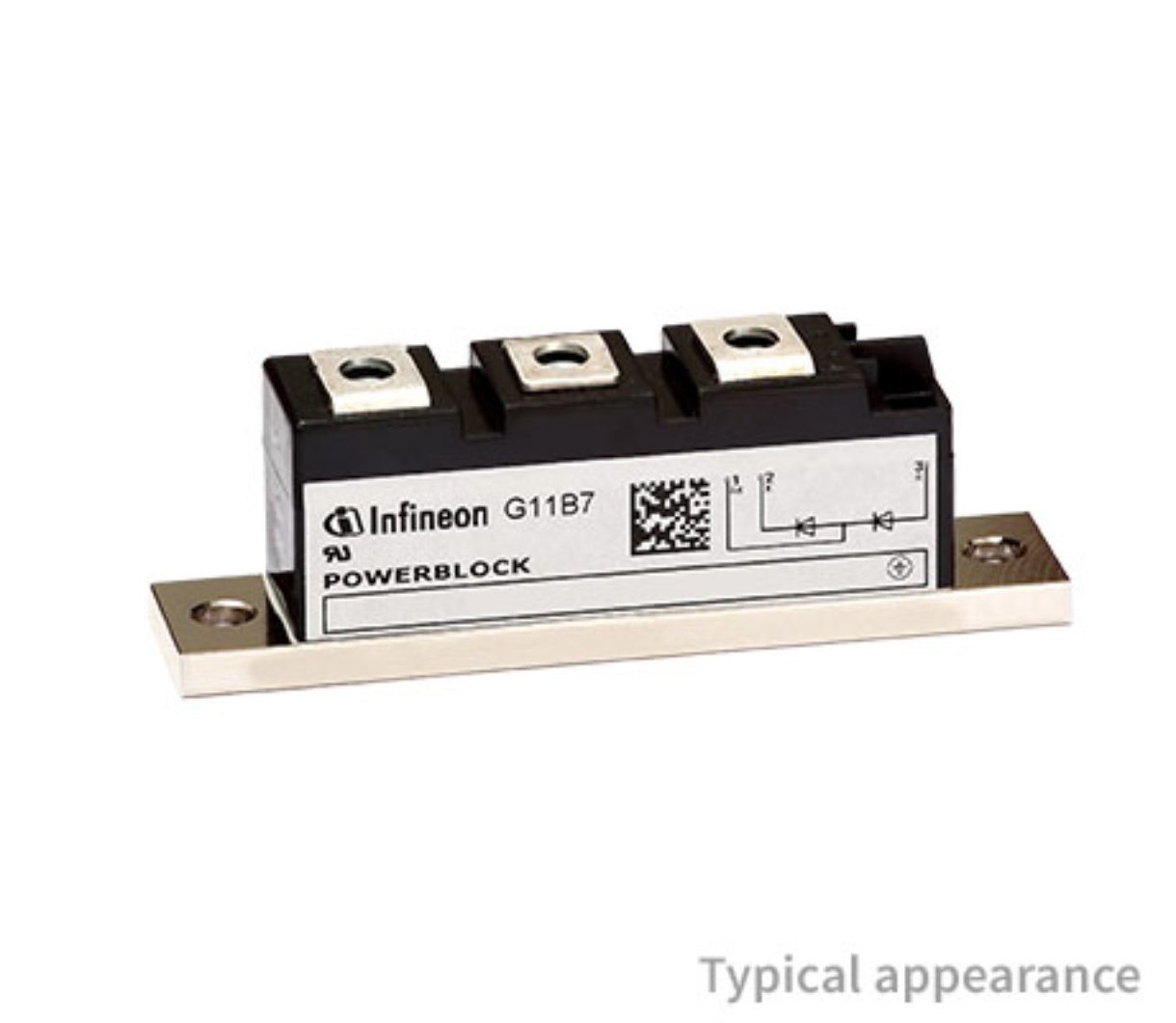

DD89N16KHPSA1

Specifications

Yayın Yılı

2003

Operating Temperature Junction

-40°C~150°C

Kurşunsuz

Lead Free

Jesd30 Code

R-XUFM-X3

Diode Element Material

SILICON

Operating Temperature Max

150°C

Voltage Dc Reverse Vr Max

1600V

Speed

Standard Recovery >500ns, > 200mA (Io)

RoHS Durumu

RoHS Compliant

Number Of Phases

1

Case Connection

ISOLATED

Forward Current

89A

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Current Reverse Leakage Vr

20mA @ 1600V

Montaj Tipi

Chassis Mount

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Ambalaj

Bulk

Parça Durumu

Active

Voltage Forward Vf Max If

1.5V @ 300A

Terminal Sayısı

3

Terminal Pozisyonu

UPPER

Yüzey Montaj

NO

Max Repetitive Reverse Voltage Vrrm

1.6kV

Diode Type

Standard

Number Of Elements

2

Applications

GENERAL PURPOSE

Kılıf / Paket

Module

Terminal Formu

UNSPECIFIED

Halogen Free

Not Halogen Free

Nem Hassasiyeti (MSL)

Not Applicable

Rep Pk Reverse Voltagemax

1600V

Max Forward Surge Current Ifsm

2.4kA

ECCN Kodu

EAR99

Diode Configuration

1 Pair Common Cathode

HTS Kodu

8541.10.00.80

Fabrika Tedarik Süresi

8 Weeks
