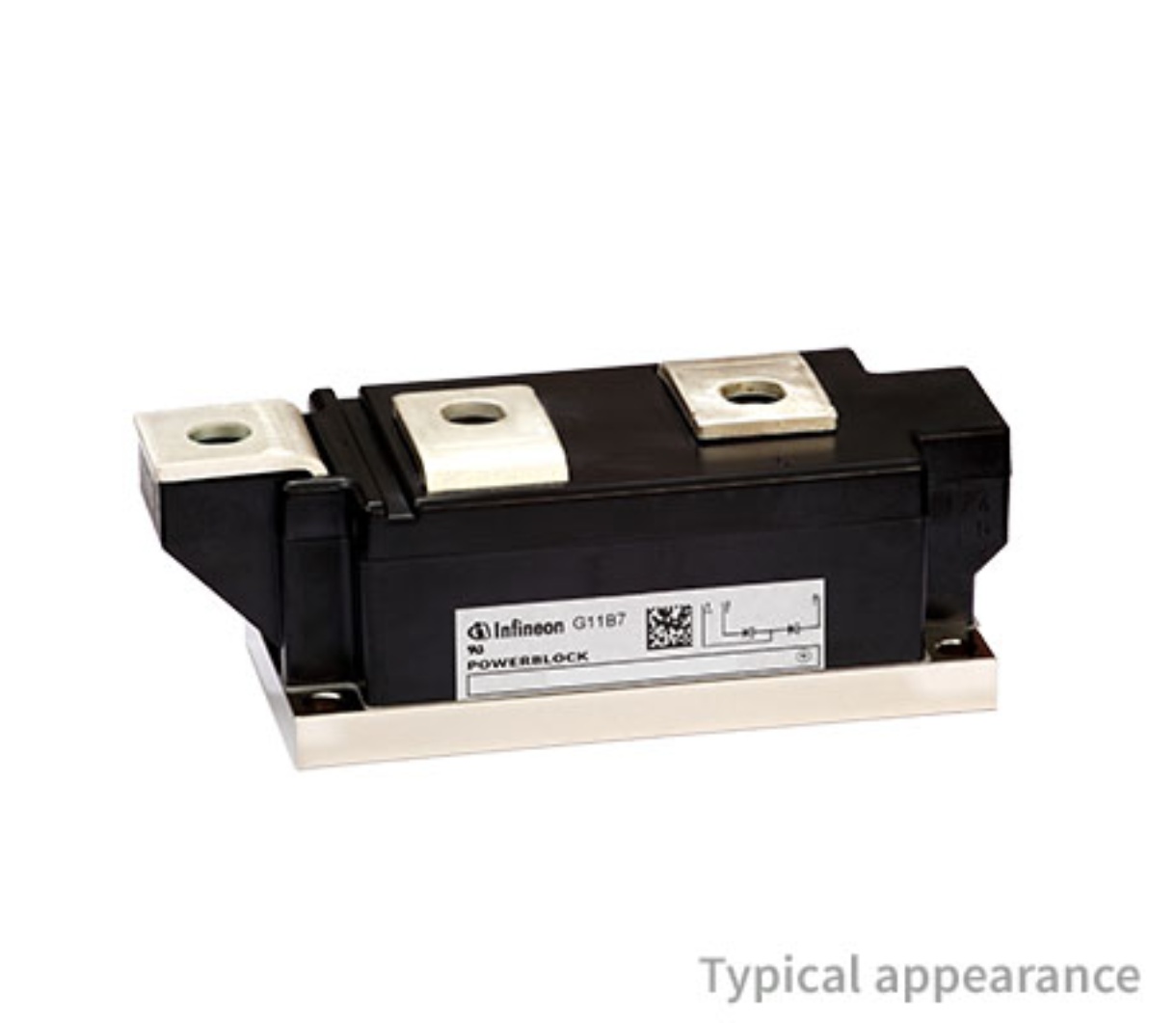

DD710N16KHPSA2

Specifications

Diode Type

Standard

Terminal Pozisyonu

UPPER

Yüzey Montaj

NO

Max Repetitive Reverse Voltage Vrrm

1.6kV

Additional Feature

HIGH RELIABILITY, UL RECOGNIZED

Terminal Sayısı

3

Voltage Forward Vf Max If

1.31V @ 2500A

Kılıf / Paket

Module

Applications

MEDIUM POWER

Number Of Elements

2

Rep Pk Reverse Voltagemax

1600V

Nem Hassasiyeti (MSL)

Not Applicable

Terminal Formu

UNSPECIFIED

Halogen Free

Not Halogen Free

Fabrika Tedarik Süresi

8 Weeks

HTS Kodu

8541.10.00.80

Diode Configuration

1 Pair Series Connection

ECCN Kodu

EAR99

Max Forward Surge Current Ifsm

26kA

Operating Temperature Max

150°C

Diode Element Material

SILICON

Jesd30 Code

R-XUFM-X3

Kurşunsuz

Lead Free

Operating Temperature Junction

-40°C~150°C

Reverse Currentmax

40000μA

Yayın Yılı

2012

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Number Of Phases

1

Forward Current

710A

Case Connection

ISOLATED

RoHS Durumu

RoHS Compliant

Speed

Standard Recovery >500ns, > 200mA (Io)

Voltage Dc Reverse Vr Max

1600V

Parça Durumu

Active

Ambalaj

Bulk

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Montaj Tipi

Chassis Mount

Current Reverse Leakage Vr

40mA @ 1600V
