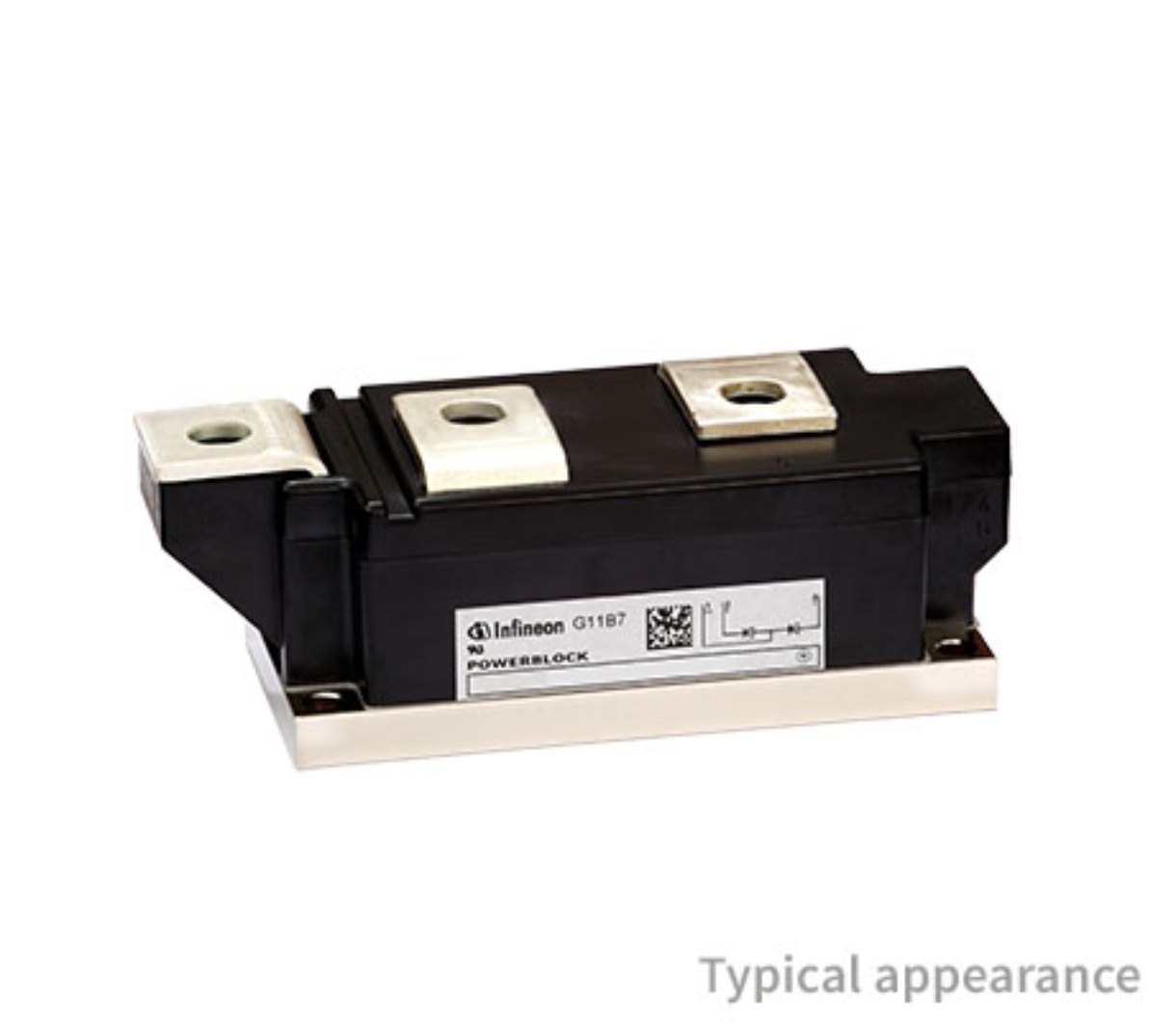

DD600N18KHPSA2

Specifications

Jesd30 Code

R-XUFM-X3

Voltage Forward Vf Max If

1.32V @ 1800A

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Formu

UNSPECIFIED

Current Average Rectified Io

600A

Pin Sayısı

60

Case Connection

ISOLATED

Diode Configuration

1 Pair Series Connection

Peak Nonrepetitive Surge Current

22kA

Halogen Free

Not Halogen Free

HTS Kodu

8541.10.00.80

Terminal Sayısı

3

Terminal Pozisyonu

UPPER

Number Of Elements

2

Operating Temperature Junction

-40°C~150°C

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

Not Applicable

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Parça Durumu

Active

Number Of Phases

1

Fabrika Tedarik Süresi

8 Weeks

Ambalaj

Bulk

Speed

Standard Recovery >500ns, > 200mA (Io)

Diode Type

Standard

Diode Element Material

SILICON

Peak Reverse Current

40mA

Additional Feature

UL RECOGNIZED

Kılıf / Paket

Module

Max Forward Surge Current Ifsm

19kA

ECCN Kodu

EAR99

Current Reverse Leakage Vr

40mA @ 1800V

Nonrep Pk Forward Currentmax

19000A

Rep Pk Reverse Voltagemax

1800V

Montaj Tipi

Chassis Mount

Montaj

Screw

Max Repetitive Reverse Voltage Vrrm

1.8kV

Applications

GENERAL PURPOSE

Kurşunsuz

Lead Free

Voltage Dc Reverse Vr Max

1800V

Forward Voltage

1.32V
