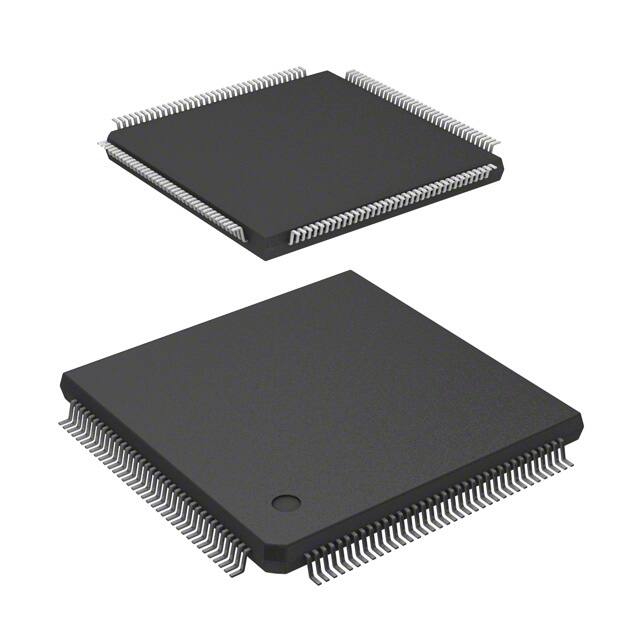

C167CRLMHABXQLA1

Specifications

JESD-609 Kodu

e0

Core Processor

C166

Radyasyon Dayanımı

No

Has Adc

YES

Terminal Sayısı

144

Number Of Ios

111

Access Time

25 μs

Peripherals

POR, PWM, WDT

Temel Parça No

SA*C167CR

Number Of Spi Channels

1

Data Bus Width

16b

Number Of Pwm Channels

4

Operating Supply Voltage

5V

Ram Size

4K x 8

Bit Size

16

Terminal Formu

GULL WING

Data Converters

A/D 16x10b

Montaj Tipi

Surface Mount

Connectivity

CANbus, EBI/EMI, SPI, UART/USART

Max Power Dissipation

1.5W

Pin Sayısı

144

Ambalaj

Tray

Halogen Free

Halogen Free

Terminal Kaplaması

TIN LEAD

Interface

CAN, EBI/EMI, SPI, UART, USART

Number Of Timerscounters

9

Frekans

25MHz

Yayın Yılı

2005

Genişlik

28mm

Gerilim

5V

Watchdog Timers

Yes

Pin Sayısı

144

Besleme Gerilimi

5V

RoHS Durumu

ROHS3 Compliant

Çalışma Sıcaklığı

0°C~70°C TA

Number Of Adc Channels

16

Voltage Supply Vccvdd

4.5V~5.5V

Oscillator Type

External

Upsucsperipheral Ics Type

MICROCONTROLLER

Program Memory Type

ROMless
