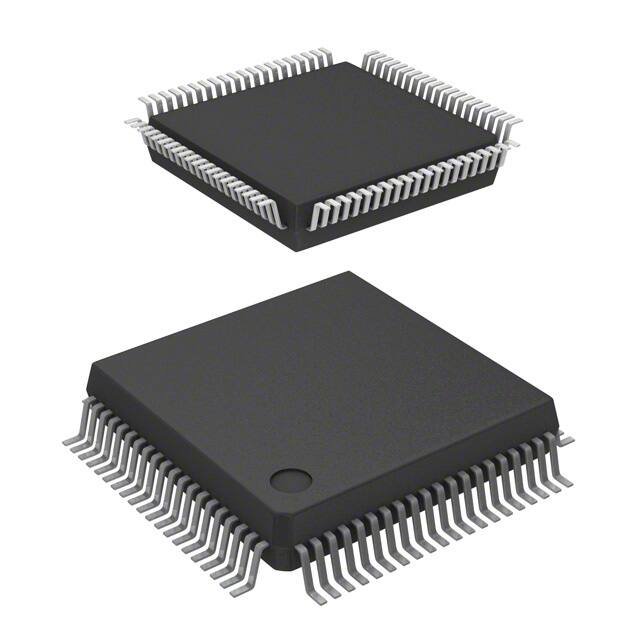

C164CILMCAFXUMA1

Specifications

Data Bus Width

16b

Number Of Ios

59

Data Converters

A/D 8x10b

Temel Parça No

SA*C164CI

Pin Sayısı

80

Operating Supply Voltage

5V

Connectivity

CANbus, EBI/EMI, SPI, SSC, UART/USART

Number Of Timerscounters

3

Kılıf / Paket

80-QFP

Voltage Supply Vccvdd

4.75V~5.5V

Terminal Formu

GULL WING

Terminal Sayısı

80

Kurşunsuz

Lead Free

Core Processor

C166

Yayın Yılı

1999

Besleme Gerilimi

5V

Pwm Channels

YES

Contact Plating

Tin

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Has Adc

YES

Halogen Free

Halogen Free

Rom Programmability

OTPROM

JESD-609 Kodu

e3

Uzunluk

14mm

Additional Feature

IT CAN ALSO OPERATE AT 2.5V MINIMUM SUPPLY

Terminal Pozisyonu

QUAD

Kurşunsuz Kodu

yes

Memory Size

0B

Bit Size

16

Interface

CAN, EBI/EMI, SPI, UART, USART

Max Power Dissipation

1.5W

Core Size

16-Bit

Program Memory Type

ROMless

Montaj

Surface Mount

Parça Durumu

Obsolete

Address Bus Width

22

Terminal Adımı

0.65mm

Dac Channels

NO

Oscillator Type

External

Pin Sayısı

80
