Volume pricing
- 1+ pcs$7.90
- 10+ pcs$7.46
- 100+ pcs$7.03
- 500+ pcs$6.64
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

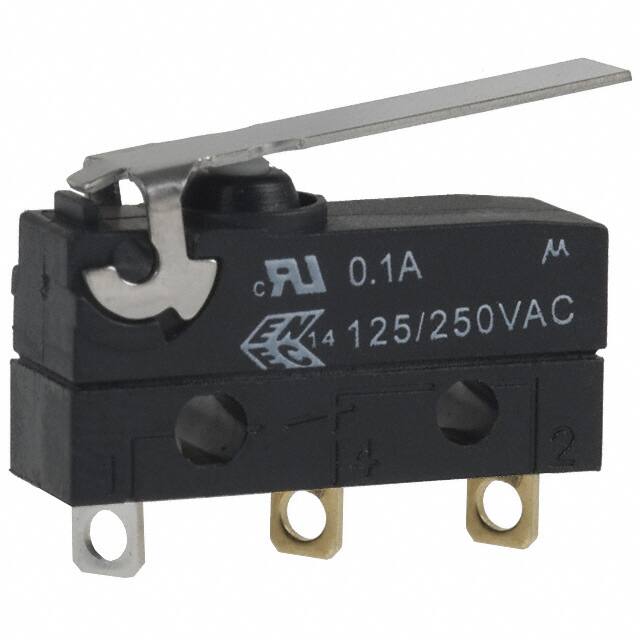

Specifications
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Uzunluk
- 19.8mm
- Operating Position
- 0.345 (8.8mm)
- Actuator Length
- 194mm
- Pozisyon Sayısı
- 2
- HTS Kodu
- 8536.50.70.00
- Max Current Rating
- 100mA
- Release Force
- 11gf
- Ingress Protection
- IP00
- REACH Uyumluluk Kodu
- unknown
- Contact Plating
- Gold
- Ratings
- IP00, IP67
- Electricallife
- 10,000 Cycles
- Yayın Yılı
- 2008
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Montaj Tipi
- Chassis Mount
- Switch Function
- On-Mom
- Actuator Type
- Lever, Straight
- Depth
- 6.4mm
- Kurşunsuz
- Lead Free
- Ambalaj
- Bulk
- Parça Durumu
- Active
- ECCN Kodu
- EAR99
- Akım Değeri
- 100mA
- Number Of Poles
- 1
- Differential Travel
- 0.028 (0.7mm)
- Terminal Kaplaması
- Matte Tin (Sn)
- Orientation
- Straight
- Onay Kuruluşu
- CE, UL
- RoHS Durumu
- RoHS Compliant
- Voltage Rated Ac
- 250V
- Kurşunsuz Kodu
- yes
- Housing Material
- PBT
- JESD-609 Kodu
- e3
- Overtravel
- 0.039 (1.0mm)
- Terminal
- Solder
- Seri
- ZW
- Pretravel
- 0.188 (4.8mm)
- Montaj
- Chassis Mount, Screw, Solder, Through Hole
- Çalışma Sıcaklığı
- -40°C~120°C
