Volume pricing
- 1+ pcs$1.24
- 10+ pcs$1.17
- 100+ pcs$1.11
- 500+ pcs$1.04
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

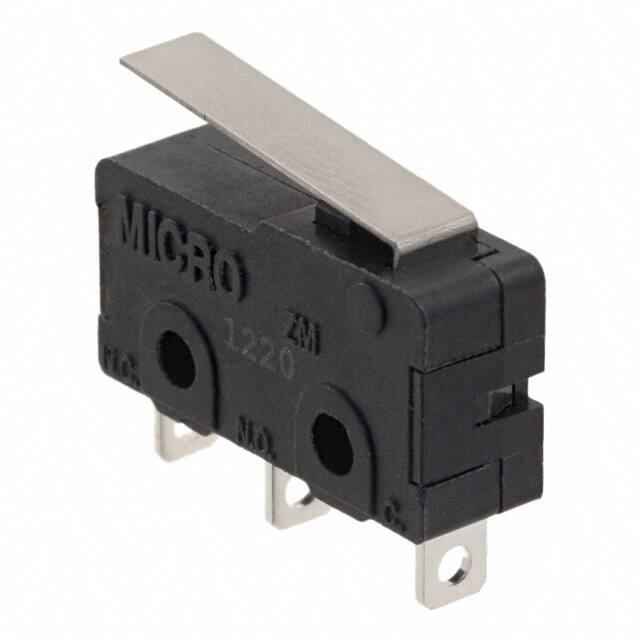

Specifications
- Contact Current Rating
- 5A
- Contact Materials
- Silver
- Kurşunsuz Kodu
- yes
- Pretravel
- 0.140 (3.6mm)
- Voltage Rated Ac
- 125V
- Operating Force
- 25gf
- RoHS Durumu
- RoHS Compliant
- Uzunluk
- 19.8mm
- Actuator Length
- 166mm
- Electricallife
- 6,000 Cycles
- Depth
- 6.4mm
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Terminal Stili
- Solder Lug
- Reach Svhc
- Unknown
- Montaj
- Chassis Mount, Screw, Solder, Through Hole
- Voltage Rated Dc
- 30V
- Actuator Type
- Lever, Straight
- Mechanical Life
- 10,000,000 Cycles
- Circuit
- SPDT
- Operating Position
- 0.465 (11.8mm)
- Differential Travel
- 0.032 (0.81mm)
- Orientation
- Straight
- Overtravel
- 0.025 (0.6mm)
- Additional Feature
- MICRO SWITCH
- Current Rating Amps
- 5A AC
- ECCN Kodu
- EAR99
- Terminal
- Solder
- Terminal Kaplaması
- Matte Tin (Sn)
- Fabrika Tedarik Süresi
- 12 Weeks
- JESD-609 Kodu
- e3
- Akım Değeri
- 5A
- Contact Currentacmax
- 5A
- Max Current Rating
- 5A
- Parça Durumu
- Active
- Switch Function
- On-Mom
- Pozisyon Sayısı
- 2
- Çalışma Sıcaklığı
- -40°C~120°C
- Montaj Tipi
- Chassis Mount
- Seri
- ZM
- HTS Kodu
- 8536.50.70.00
