Volume pricing
- 1+ pcs$2.93
- 10+ pcs$2.76
- 100+ pcs$2.60
- 500+ pcs$2.46
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

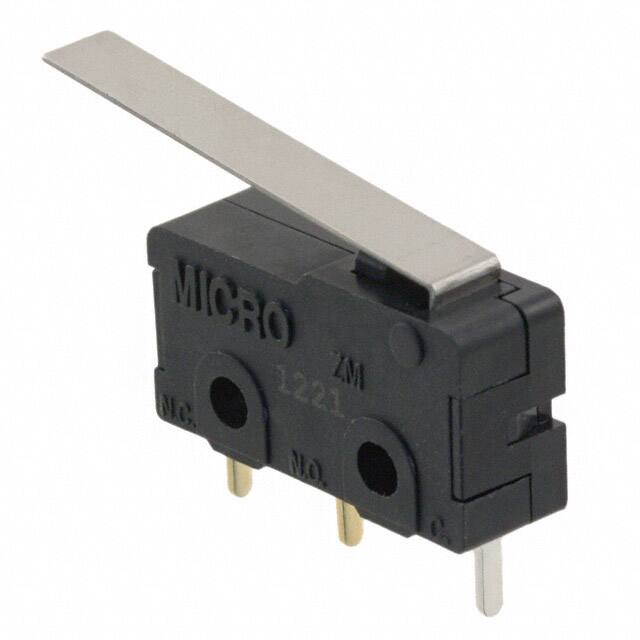

Specifications
- Contact Plating
- Gold
- Voltage Rated Dc
- 30V
- Montaj
- Panel, Through Hole
- Terminal Stili
- PC Pin
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Mechanical Life
- 10,000,000 Cycles
- Actuator Type
- Lever, Straight
- Operating Position
- 0.350 (8.9mm)
- Circuit
- SPDT
- REACH Uyumluluk Kodu
- unknown
- Current Rating Amps
- 100mA AC/DC
- Additional Feature
- MICRO SWITCH
- Overtravel
- 0.030 (0.76mm)
- Orientation
- Straight
- Kurşunsuz Kodu
- yes
- Body Breadth
- 10.6 mm
- Contact Current Rating
- 100mA
- Contact Materials
- Gold, Silver
- Voltage Rated Ac
- 125V
- Pretravel
- 0.240 (6.1mm)
- Electricallife
- 10,000 Cycles
- Actuator Length
- 248mm
- RoHS Durumu
- RoHS Compliant
- Operating Force
- 20gf
- Depth
- 6.4mm
- Seri
- ZM
- Montaj Tipi
- Through Hole
- Yayın Yılı
- 2015
- HTS Kodu
- 8536.50.70.00
- Max Voltage Rating Dc
- 30V
- Body Length Or Diameter
- 19.8mm
- Housing Material
- Nylon
- Release Force
- 5.000gf
- Max Voltage Rating Ac
- 125V
- Ambalaj
- Bulk
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fabrika Tedarik Süresi
- 12 Weeks
- Terminal Kaplaması
- Matte Tin (Sn)
- Terminal
- PCB
- ECCN Kodu
- EAR99
