Honeywell Sensing and Productivity Solutions

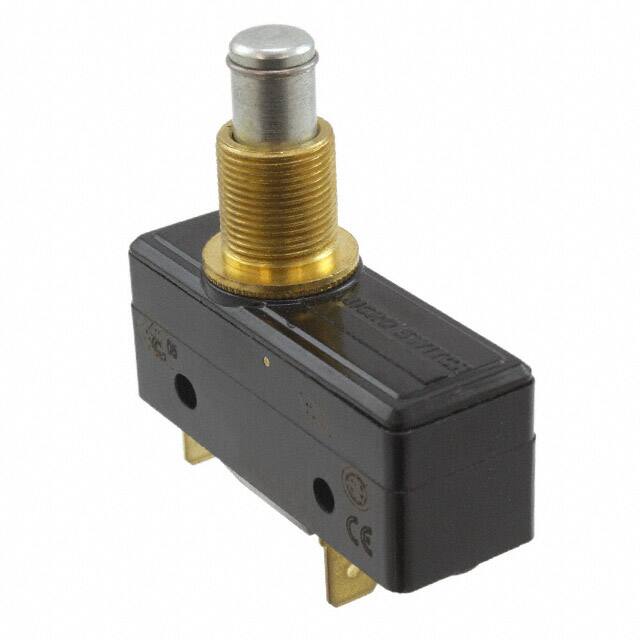

YA-2RQ1243-D6
Snap Action Switches
In StockRoHS: Compliant
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Contact Materials
- Silver
- Mechanical Life
- 20,000,000 Cycles
- Contact Currentdcmax
- 0.5A
- Release Force
- 283gf
- Özellikler
- Steel Plunger
- Akım Değeri
- 20A
- Terminal Stili
- Quick Connect - 0.250 (6.3mm)
- Housing Material
- Phenolic
- Differential Travel
- 0.007 (0.18mm)
- RoHS Durumu
- RoHS Compliant
- Max Voltage Rating Ac
- 480V
- Contact Dc Max Rating R Load
- .5A@125VDC
- Pretravel
- 0.050 (1.27mm)
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Circuit
- SPST-NO
- Çalışma Sıcaklığı
- -55°C~121°C
- Seri
- YA
- Parça Durumu
- Active
- Weight
- 286g
- Yayın Yılı
- 2001
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Actuator Type
- Overtravel Plunger
- Ambalaj
- Bulk
- Throw Configuration
- SPDT, SPST
- Material
- Plastic
- Operating Force
- 397 ~ 624gf
- Overtravel
- 0.219 (5.6mm)
- Actuator Material
- Steel
- Voltage Rated Dc
- 125V
- Terminal
- Quick Connect
- ECCN Kodu
- EAR99
- Max Voltage Rating Dc
- 250V
- Pretravelmax
- 1.27 mm
- Body Height
- 23.62mm
- Current Rating Amps
- 20A AC 500mA DC
- Orientation
- Straight
- Contact Ac Max Rating R Load
- 20A@480VAC
- Depth
- 17.45mm
- HTS Kodu
- 8536.50.70.00
- Uzunluk
- 49.28mm
