Honeywell Sensing and Productivity Solutions

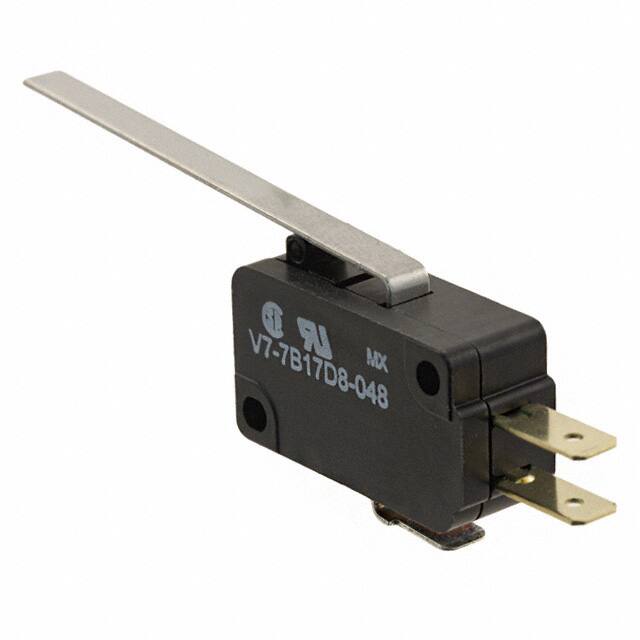

V7-7B17D8-048
Snap Action Switches
In StockRoHS: Compliant
Volume pricing
- 1+ pcs$3.79
- 10+ pcs$3.57
- 100+ pcs$3.37
- 500+ pcs$3.18
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 10 Weeks
- Switch Function
- On-Mom
- Operating Force
- 60gf
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Body Breadth
- 10.2 mm
- Actuator Length
- 508mm
- Çalışma Sıcaklığı
- -40°C~85°C
- Housing Material
- Polyester
- RoHS Durumu
- RoHS Compliant
- Mechanical Life
- 10,000,000 Cycles
- Yayın Yılı
- 2002
- Contact Current Rating
- 11A
- Uzunluk
- 73.41mm
- Release Force
- 9.000gf
- Actuator Travel
- 9.5 mm
- Voltage Rated Ac
- 125V
- Operating Position
- 0.602 (15.3mm)
- Actuator Type
- Lever, Straight
- Ambalaj
- Bulk
- Seri
- V7
- Reach Svhc
- Unknown
- Montaj
- Chassis Mount, Screw, Through Hole
- Depth
- 10.16mm
- Voltage Rated Dc
- 125V
- Body Height
- 15.9mm
- Overtravel
- 0.125 (3.2mm)
- Kurşunsuz Kodu
- no
- Circuit
- SPDT
- Max Voltage Rating Dc
- 250V
- Terminal Stili
- Quick Connect - 0.187 (4.7mm)
- Max Current Rating
- 11A
- ECCN Kodu
- EAR99
- Contact Materials
- Gold, Silver
- Max Voltage Rating Ac
- 277V
- Contact Ac Max Rating R Load
- 11A@250VAC
- Current Rating Amps
- 11A AC 500mA DC
- Electricallife
- 100,000 Cycles
- Pretravelmax
- 6.35 mm
- Pretravel
- 0.250 (6.35mm)
