Honeywell Sensing and Productivity Solutions

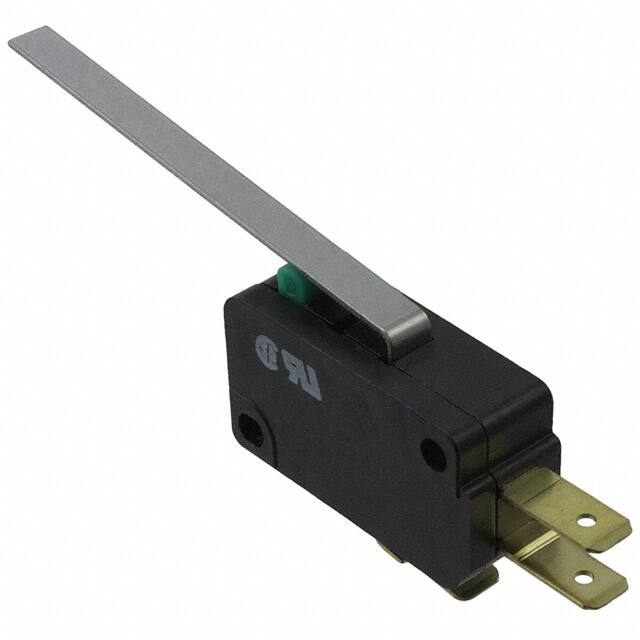

V7-3S17D8-048
Snap Action Switches
In StockRoHS: Compliant
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Operating Force
- 16gf
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Switch Function
- On-Mom
- Sealing
- CORROSION PROOF
- Fabrika Tedarik Süresi
- 9 Weeks
- Parça Durumu
- Active
- Housing Material
- Polyester
- RoHS Durumu
- RoHS Compliant
- Contact Currentacmax
- 0.1A
- Çalışma Sıcaklığı
- -40°C~85°C
- Actuator Length
- 595mm
- Operating Position
- 0.602 (15.3mm)
- Actuator Type
- Lever, Straight
- Actuator Travel
- 8.97 mm
- Voltage Rated Ac
- 125V
- Uzunluk
- 38.99mm
- Release Force
- 0.510gf
- HTS Kodu
- 8536.50.70.00
- Mechanical Life
- 10,000,000 Cycles
- Yayın Yılı
- 2001
- Reach Svhc
- Unknown
- Ambalaj
- Bulk
- Seri
- V7
- Depth
- 10.16mm
- Montaj
- Chassis Mount, Panel, Screw
- Contact Materials
- Gold, Silver
- Max Voltage Rating Ac
- 125V
- Terminal Stili
- Quick Connect - 0.187 (4.7mm)
- Max Current Rating
- 100mA
- ECCN Kodu
- EAR99
- Kurşunsuz Kodu
- yes
- Circuit
- SPDT
- Body Height
- 15.88mm
- Contact Plating
- Gold
- Overtravel
- 0.118 (3.0mm)
- Weight
- 8g
- Pretravel
- 0.236 (6.0mm)
- Orientation
- Straight
- Current Rating Amps
- 100mA AC
- Electricallife
- 100,000 Cycles
