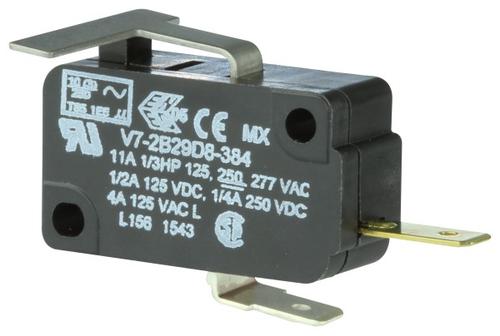

V7-2B29D8-384

Specifications

Terminal

Quick Connect

Differential Travel

0.015 (0.38mm)

Montaj Tipi

Chassis Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Throw Configuration

SPST

Akım Değeri

11A

Pretravelmax

1.68 mm

Electricallife

100,000 Cycles

Current Rating Amps

11A AC 500mA DC

Contact Ac Max Rating R Load

11A@250VAC

Weight

8g

Orientation

Straight

Pretravel

0.067 (1.7mm)

Circuit

SPST-NO

Kurşunsuz Kodu

no

Overtravel

0.039 (1.0mm)

Body Height

15.9mm

Body Length Or Diameter

28.8mm

Max Voltage Rating Ac

277V

Contact Materials

Silver

Terminal Stili

Quick Connect - 0.187 (4.7mm)

Max Voltage Rating Dc

250V

Montaj

Chassis Mount, Panel, Screw

Voltage Rated Dc

125V

Seri

V7

Ambalaj

Bulk

Release Force

6.000gf

Yayın Yılı

2004

Mechanical Life

10,000,000 Cycles

Actuator Type

Lever, Formed

Operating Position

0.602 (15.3mm)

Voltage Rated Ac

125V

Actuator Travel

2.65 mm

Body Breadth

10.2 mm

Actuator Length

1.435m

RoHS Durumu

RoHS Compliant

Housing Material

Polyester

Çalışma Sıcaklığı

-40°C~85°C

Fabrika Tedarik Süresi

9 Weeks

Parça Durumu

Active
