Volume pricing
- 1+ pcs$15.62
- 10+ pcs$14.73
- 100+ pcs$13.90
- 500+ pcs$13.11
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

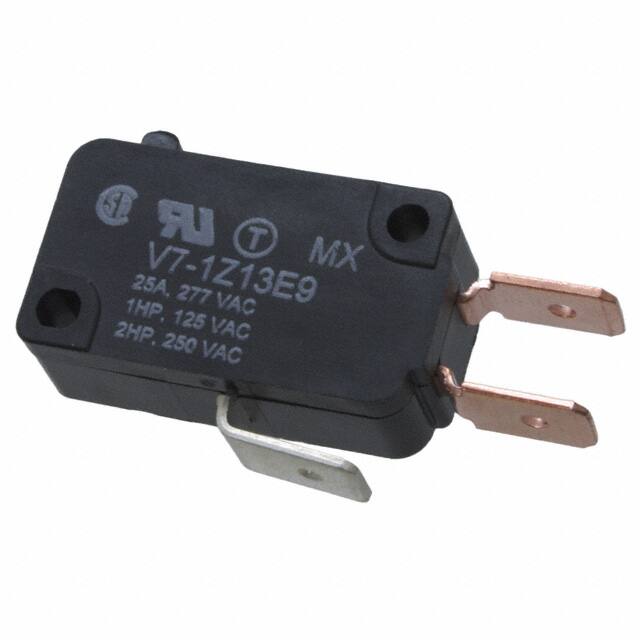

Specifications
- Contact Ac Max Rating R Load
- 25A@277VAC
- Current Rating Amps
- 25A AC
- Electricallife
- 100,000 Cycles
- Pretravelmax
- 1.19 mm
- Pretravel
- 0.047 (1.2mm)
- Orientation
- Straight
- Weight
- 8g
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Montaj Tipi
- Chassis Mount
- Differential Travel
- 0.010 (0.25mm)
- Terminal
- Quick Connect
- Akım Değeri
- 25A
- Montaj
- Chassis Mount, Panel, Screw
- Actuator Material
- Plastic
- Depth
- 10.16mm
- Voltage Rated Dc
- 250V
- Body Height
- 15.9mm
- Overtravel
- 0.050 (1.27mm)
- Kurşunsuz Kodu
- no
- Circuit
- SPDT
- Max Current Rating
- 25A
- Terminal Stili
- Quick Connect - 0.250 (6.3mm)
- Max Voltage Rating Ac
- 277V
- Contact Materials
- Cadmium, Silver
- Mechanical Life
- 10,000,000 Cycles
- Release Force
- 20gf
- Uzunluk
- 40.06mm
- Voltage Rated Ac
- 277V
- Operating Position
- 0.579 (14.7mm)
- Actuator Type
- Round (Pin Plunger)
- Ambalaj
- Bulk
- Seri
- V7
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 9 Weeks
- Switch Function
- On-Mom
- Operating Force
- 225gf
- REACH Uyumluluk Kodu
- unknown
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Body Breadth
- 10.2 mm
- Çalışma Sıcaklığı
- -40°C~150°C
