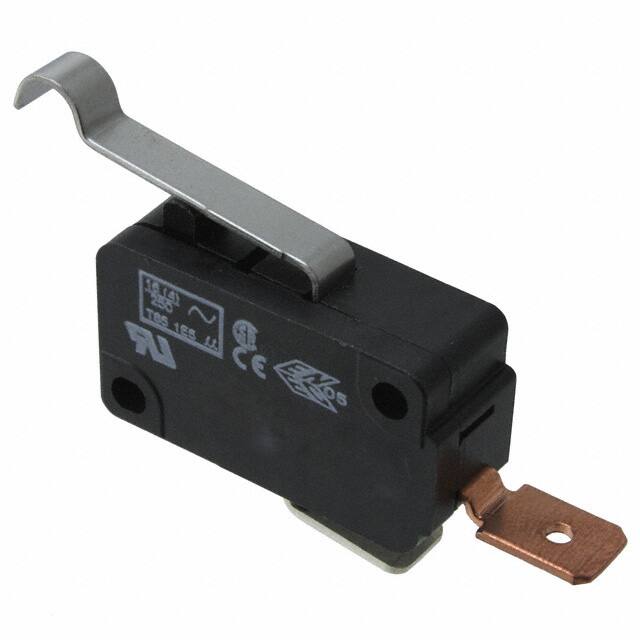

Honeywell Sensing and Productivity Solutions
V7-1V29E9-263
Snap Action Switches
In StockRoHS: Compliant
Volume pricing
- 1+ pcs$4.57
- 10+ pcs$4.31
- 100+ pcs$4.07
- 500+ pcs$3.84
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Actuator Length
- 328mm
- Çalışma Sıcaklığı
- -40°C~85°C
- Housing Material
- Polyester
- RoHS Durumu
- RoHS Compliant
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 7 Weeks
- Sealing
- CORROSION PROOF
- Switch Function
- Off-Mom
- Operating Force
- 110gf
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Ambalaj
- Bulk
- Seri
- V7
- Yayın Yılı
- 2001
- Mechanical Life
- 10,000,000 Cycles
- HTS Kodu
- 8536.50.70.00
- Release Force
- 7.000gf
- Uzunluk
- 39.55mm
- Voltage Rated Ac
- 125V
- Actuator Travel
- 4.52 mm
- Operating Position
- 0.730 (18.5mm)
- Actuator Type
- Lever, Simulated Roller
- Body Height
- 15.88mm
- Overtravel
- 0.062 (1.6mm)
- Kurşunsuz Kodu
- yes
- Circuit
- SPST-NO
- Max Current Rating
- 21A
- Terminal Stili
- Quick Connect - 0.250 (6.3mm)
- ECCN Kodu
- EAR99
- Max Voltage Rating Ac
- 277V
- Contact Materials
- Cadmium, Silver
- Montaj
- Chassis Mount, Screw
- Depth
- 10.16mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Throw Configuration
- SPST
- Montaj Tipi
- Chassis Mount
- Terminal
- Quick Connect
- Differential Travel
- 0.025 (0.6mm)
- Akım Değeri
- 21A
- Contact Ac Max Rating R Load
- 21A@277VAC
- Current Rating Amps
- 21A AC
