Honeywell Sensing and Productivity Solutions

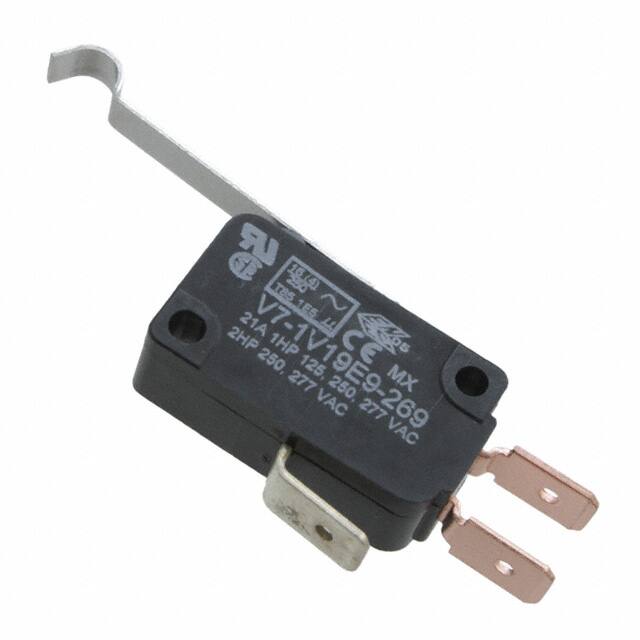

V7-1V19E9-269
Snap Action Switches
In StockRoHS: Compliant
Volume pricing
- 1+ pcs$8.43
- 10+ pcs$7.95
- 100+ pcs$7.50
- 500+ pcs$7.08
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Akım Değeri
- 21A
- Montaj Tipi
- Chassis Mount
- Differential Travel
- 0.037 (0.94mm)
- Terminal
- Quick Connect
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Weight
- 8g
- Pretravel
- 0.172 (4.4mm)
- Orientation
- Straight
- Current Rating Amps
- 21A AC
- Electricallife
- 100,000 Cycles
- Pretravelmax
- 4.39 mm
- Contact Ac Max Rating R Load
- 21A@277VAC
- Body Length Or Diameter
- 28.83mm
- Contact Materials
- Cadmium, Silver
- Max Voltage Rating Ac
- 277V
- Terminal Stili
- Quick Connect - 0.250 (6.3mm)
- ECCN Kodu
- EAR99
- Kurşunsuz Kodu
- yes
- Circuit
- SPDT
- Body Height
- 15.88mm
- Overtravel
- 0.090 (2.3mm)
- Montaj
- Chassis Mount, Screw
- Ambalaj
- Bulk
- Seri
- V7
- Operating Position
- 0.730 (18.5mm)
- Actuator Type
- Lever, Simulated Roller
- Actuator Travel
- 6.73 mm
- Voltage Rated Ac
- 277V
- Release Force
- 5.000gf
- HTS Kodu
- 8536.50.70.00
- Mechanical Life
- 10,000,000 Cycles
- Yayın Yılı
- 2001
- Housing Material
- Polyester
- RoHS Durumu
- RoHS Compliant
- Çalışma Sıcaklığı
- -40°C~85°C
- Actuator Length
- 328mm
- Body Breadth
- 10.16 mm
- Operating Force
- 73gf
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Switch Function
- On-Mom
