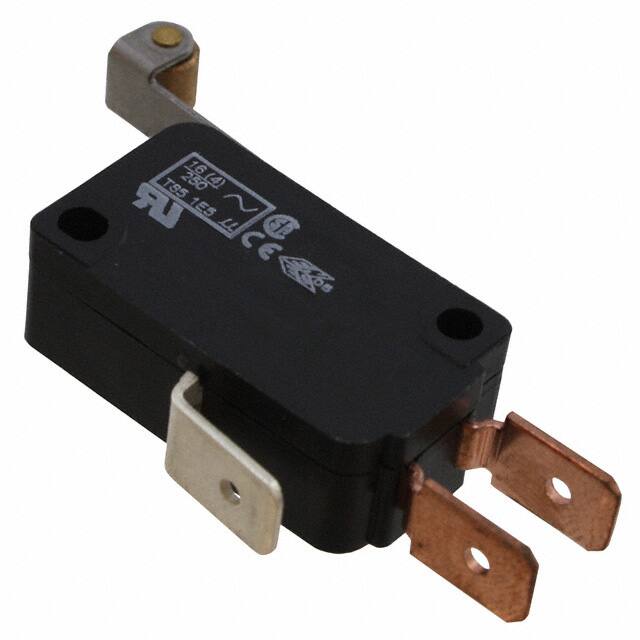

Specifications
- Switch Function
- On-Mom
- Operating Force
- 100gf
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 6 Weeks
- Sealing
- CORROSION PROOF
- Çalışma Sıcaklığı
- -40°C~85°C
- Housing Material
- Polyester
- RoHS Durumu
- RoHS Compliant
- Actuator Length
- 340mm
- Voltage Rated Ac
- 125V
- Actuator Travel
- 4.77 mm
- Operating Position
- 0.806 (20.5mm)
- Actuator Type
- Lever, Roller
- Contact Current Rating
- 21A
- Yayın Yılı
- 2001
- Mechanical Life
- 10,000,000 Cycles
- HTS Kodu
- 8536.50.70.00
- Release Force
- 7.000gf
- Uzunluk
- 50.98mm
- Reach Svhc
- Unknown
- Ambalaj
- Bulk
- Seri
- V7
- Depth
- 10.16mm
- Montaj
- Chassis Mount, Panel, Screw
- Terminal Stili
- Quick Connect - 0.250 (6.3mm)
- Max Current Rating
- 21A
- ECCN Kodu
- EAR99
- Max Voltage Rating Ac
- 277V
- Contact Materials
- Cadmium, Silver
- Body Height
- 15.88mm
- Overtravel
- 0.065 (1.7mm)
- Kurşunsuz Kodu
- yes
- Circuit
- SPDT
- Pretravel
- 0.120 (3.0mm)
- Orientation
- Straight
- Weight
- 8g
- Contact Ac Max Rating R Load
- 21A@277VAC
- Current Rating Amps
- 21A AC
- Pretravelmax
- 3.07 mm
