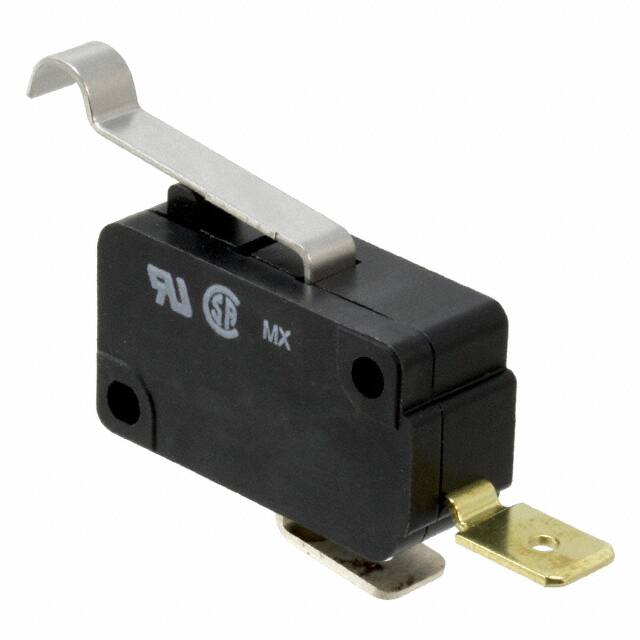

Honeywell Sensing and Productivity Solutions
V7-1C27E9-263
Snap Action Switches
In StockRoHS: Compliant
Volume pricing
- 1+ pcs$3.38
- 10+ pcs$3.19
- 100+ pcs$3.01
- 500+ pcs$2.84
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Body Breadth
- 10.16 mm
- Contact Currentacmax
- 15.1A
- Çalışma Sıcaklığı
- -40°C~85°C
- Housing Material
- Polyester
- RoHS Durumu
- RoHS Compliant
- Sealing
- CORROSION PROOF
- Fabrika Tedarik Süresi
- 10 Weeks
- Switch Function
- Off-Mom
- Operating Force
- 91gf
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Reach Svhc
- Unknown
- Contact Current Rating
- 15A
- Mechanical Life
- 10,000,000 Cycles
- Operating Position
- 0.730 (18.5mm)
- Actuator Type
- Lever, Simulated Roller
- Body Height
- 15.88mm
- Kurşunsuz Kodu
- yes
- Circuit
- SPST-NO
- Max Voltage Rating Dc
- 250V
- Max Voltage Rating Ac
- 277V
- Contact Materials
- Silver
- Body Length Or Diameter
- 28.83mm
- Voltage Rated Dc
- 125V
- Differential Travel
- 0.025 (0.6mm)
- Contact Ac Max Rating R Load
- 15.1A@277VAC
- Orientation
- Straight
- Actuator Length
- 328mm
- Parça Durumu
- Active
- Contact Dc Max Rating R Load
- .5A@125VDC
- Ambalaj
- Bulk
- Seri
- V7
- Yayın Yılı
- 2001
- HTS Kodu
- 8536.50.70.00
- Release Force
- 9.000gf
- Voltage Rated Ac
- 277V
- Actuator Travel
- 4.24 mm
- Overtravel
- 0.060 (1.5mm)
- Terminal Stili
- Quick Connect - 0.250 (6.3mm)
- ECCN Kodu
- EAR99
- Montaj
- Chassis Mount, Screw
