Honeywell Sensing and Productivity Solutions

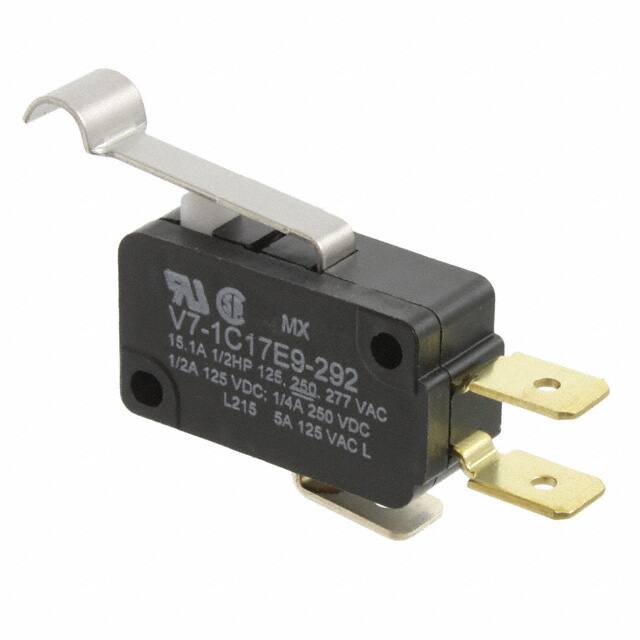

V7-1C17E9-292
Snap Action Switches
In StockRoHS: Compliant
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- REACH Uyumluluk Kodu
- unknown
- Operating Force
- 90gf
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Switch Function
- On-Mom
- Sealing
- CORROSION PROOF
- Fabrika Tedarik Süresi
- 10 Weeks
- Housing Material
- Polyester
- RoHS Durumu
- RoHS Compliant
- Contact Currentacmax
- 15.1A
- Çalışma Sıcaklığı
- -40°C~85°C
- Body Breadth
- 10.16 mm
- Operating Position
- 0.730 (18.5mm)
- Actuator Type
- Lever, Simulated Roller
- Mechanical Life
- 10,000,000 Cycles
- Voltage Rated Dc
- 125V
- Body Length Or Diameter
- 28.83mm
- Contact Materials
- Silver
- Max Voltage Rating Ac
- 277V
- Max Voltage Rating Dc
- 250V
- Kurşunsuz Kodu
- yes
- Circuit
- SPDT
- Body Height
- 15.88mm
- Orientation
- Straight
- Contact Ac Max Rating R Load
- 15.1A@277VAC
- Differential Travel
- 0.030 (0.76mm)
- Contact Dc Max Rating R Load
- .5A@125VDC
- Parça Durumu
- Active
- Actuator Length
- 328mm
- Actuator Travel
- 4.19 mm
- Voltage Rated Ac
- 125V
- Release Force
- 9.000gf
- HTS Kodu
- 8536.50.70.00
- Yayın Yılı
- 2001
- Ambalaj
- Bulk
- Seri
- V7
- Montaj
- Chassis Mount, Screw
- Contact Currentdcmax
- 0.5A
- Terminal Stili
- Quick Connect - 0.250 (6.3mm)
- ECCN Kodu
- EAR99
- Overtravel
- 0.060 (1.5mm)
