Honeywell Sensing and Productivity Solutions

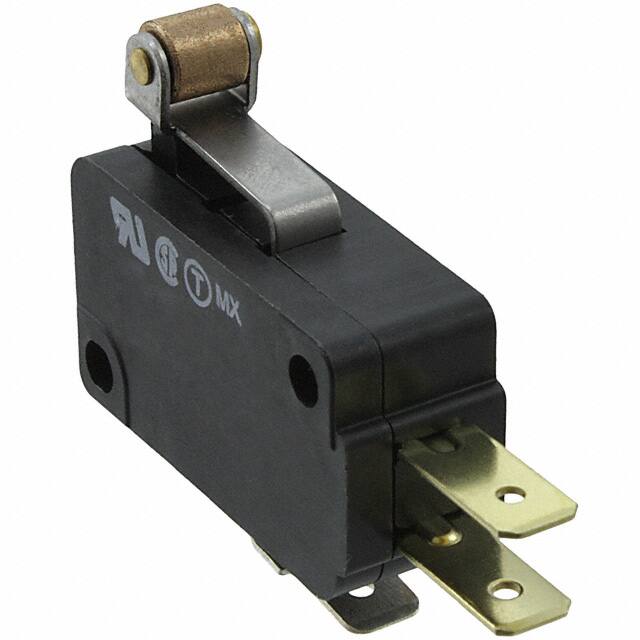

V7-1C13D8-201
Snap Action Switches
In StockRoHS: Compliant
Volume pricing
- 1+ pcs$7.48
- 10+ pcs$7.06
- 100+ pcs$6.66
- 500+ pcs$6.28
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Switch Function
- On-Mom
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Contact Dc Max Rating R Load
- A@VDC
- Operating Force
- 175gf
- Number Of Poles
- 1
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 9 Weeks
- Çalışma Sıcaklığı
- -40°C~150°C
- RoHS Durumu
- RoHS Compliant
- Housing Material
- Polyester
- Actuator Length
- 206mm
- Voltage Rated Ac
- 125V
- Actuator Type
- Lever, Roller
- Operating Position
- 0.812 (20.6mm)
- Contact Current Rating
- 15A
- Yayın Yılı
- 1995
- Mechanical Life
- 10,000,000 Cycles
- Release Force
- 19gf
- Uzunluk
- 38.99mm
- Reach Svhc
- Unknown
- Seri
- V7
- Ambalaj
- Bulk
- Depth
- 10.16mm
- Voltage Rated Dc
- 125V
- Yükseklik
- 29.62mm
- Montaj
- Chassis Mount, Screw, Through Hole
- Actuator Material
- Bronze, Steel
- ECCN Kodu
- EAR99
- Max Voltage Rating Dc
- 250V
- Terminal Stili
- Quick Connect - 0.187 (4.7mm)
- Max Current Rating
- 15.1A
- Pozisyon Sayısı
- 2
- Max Voltage Rating Ac
- 277V
- Contact Materials
- Gold, Silver
- Overtravel
- 0.032 (0.81mm)
- Circuit
- SPDT
- Kurşunsuz Kodu
- no
- Orientation
- Straight
- Pretravel
- 0.047 (1.2mm)
- Weight
- 8g
