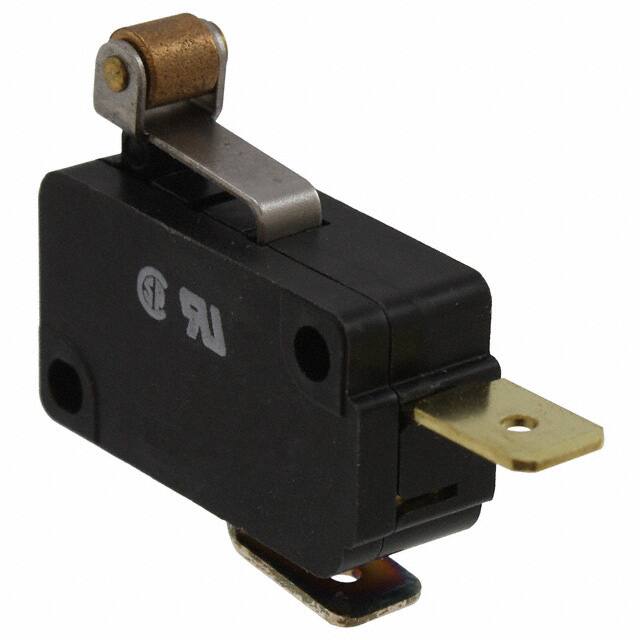

V7-1A38E9-201-2

Specifications

Akım Değeri

5A

Throw Configuration

SPST

Nem Hassasiyeti (MSL)

1 (Unlimited)

Differential Travel

0.015 (0.38mm)

Terminal

Quick Connect

Montaj Tipi

Chassis Mount

Orientation

Straight

Pretravel

0.047 (1.2mm)

Weight

8g

Pretravelmax

1.19 mm

Electricallife

100,000 Cycles

Current Rating Amps

5A AC

ECCN Kodu

EAR99

Max Current Rating

5A

Terminal Stili

Quick Connect - 0.250 (6.3mm)

Pozisyon Sayısı

2

Max Voltage Rating Ac

277V

Contact Materials

Silver

Overtravel

0.040 (1.0mm)

Body Height

15.86mm

Circuit

SPST-NC

Kurşunsuz Kodu

yes

Depth

10.16mm

Montaj

Chassis Mount, Panel, Screw

Seri

V7

Ambalaj

Bulk

Voltage Rated Ac

125V

Actuator Type

Lever, Roller

Operating Position

0.812 (20.6mm)

Contact Current Rating

5A

Yayın Yılı

2004

Mechanical Life

10,000,000 Cycles

HTS Kodu

8536.50.70.00

Release Force

25gf

Uzunluk

39.55mm

Çalışma Sıcaklığı

-40°C~85°C

Contact Currentacmax

5A

RoHS Durumu

RoHS Compliant

Housing Material

Thermoplastic

Switch Function

On-Mom
