Honeywell Sensing and Productivity Solutions

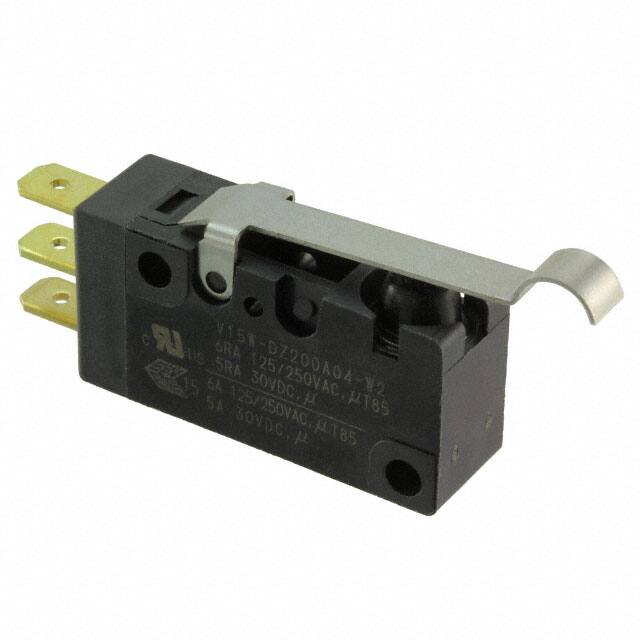

V15W-DZ200A04-W2
Snap Action Switches
In StockRoHS: Compliant
Volume pricing
- 1+ pcs$11.64
- 10+ pcs$10.98
- 100+ pcs$10.36
- 500+ pcs$9.78
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Mounting Feature
- PANEL MOUNT
- Contact Voltagedcmax
- 30V
- Material
- Plastic
- Voltage Rated Dc
- 30V
- Ambalaj
- Tray
- Contact Ac Max Rating R Load
- 6A@250VAC
- Release Force
- 20gf
- Pretravel
- 0.125 (3.2mm)
- Yüzey Montaj
- NO
- Contact Resistance
- 0.3mOhm
- Weight
- 8g
- REACH Uyumluluk Kodu
- unknown
- Çalışma Sıcaklığı
- -40°C~85°C
- Current Rating Amps
- 5A AC/DC
- ECCN Kodu
- EAR99
- Contact Currentacmax
- 6A
- Housing Material
- PBT
- Onay Kuruluşu
- CQC, ENEC, UL
- Switch Function
- On-Mom
- Montaj Tipi
- Chassis Mount
- Actuator Type
- Lever, Simulated Roller
- Differential Travel
- 0.047 (1.2mm)
- Terminal Stili
- Quick Connect - 0.187 (4.7mm)
- Operating Position
- 0.730 (18.5mm)
- Voltage Rated Ac
- 125V
- Insulation Resistance
- 100000000Ohm
- Contact Currentdcmax
- 5A
- Fabrika Tedarik Süresi
- 9 Weeks
- Mechanical Life
- 1,000,000 Cycles
- RoHS Durumu
- RoHS Compliant
- Dielectric Withstanding Voltage
- 500VRMS V
- Electricallife
- 10,000 Cycles
- Parça Durumu
- Active
- Operating Force
- 120gf
- Actuator Length
- 15mm
- Circuit
- SPDT
- Overtravel
- 0.051 (1.3mm)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Voltageacmax
- 250V
