Honeywell Sensing and Productivity Solutions

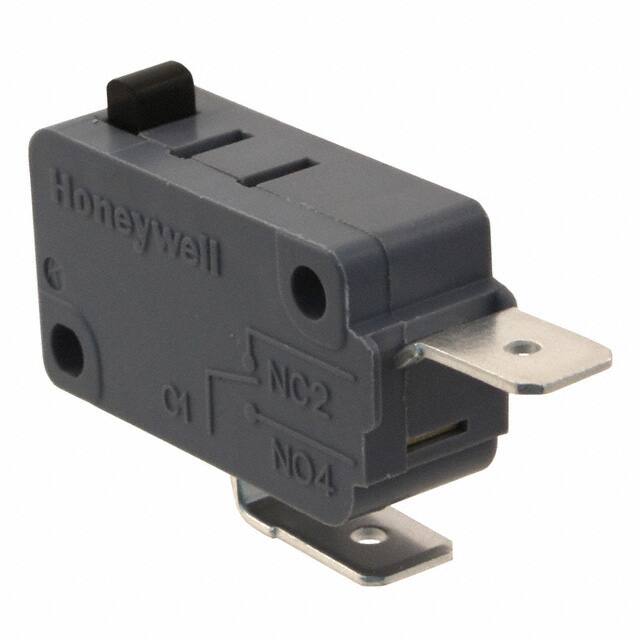

V15T16-CC300-K
Snap Action Switches
In StockRoHS: Compliant
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Uzunluk
- 39.7mm
- Orientation
- Straight
- Body Height
- 15.9mm
- Contact Current Rating
- 16A
- Housing Material
- PBT
- Reach Svhc
- Unknown
- Çalışma Sıcaklığı
- -25°C~125°C
- Current Rating Amps
- 16A AC
- ECCN Kodu
- EAR99
- Pretravel
- 0.063 (1.6mm)
- Weight
- 5g
- Max Voltage Rating Ac
- 250V
- Max Current Rating
- 16A
- Ambalaj
- Tray
- Contact Ac Max Rating R Load
- 16A@250VAC
- Release Force
- 75gf
- Material
- Plastic
- Throw Configuration
- SPST
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Seri
- V15
- Yayın Yılı
- 2007
- Circuit
- SPST-NC
- Overtravel
- 0.030 (0.76mm)
- Operating Force
- 300gf
- Montaj
- Chassis Mount, Screw
- Akım Değeri
- 16A
- Depth
- 10.3mm
- Terminal
- Quick Connect
- Parça Durumu
- Active
- Electricallife
- 50,000 Cycles
- RoHS Durumu
- RoHS Compliant
- Operating Position
- 0.579 (14.7mm)
- Voltage Rated Ac
- 250V
- HTS Kodu
- 8536.50.70.00
- Fabrika Tedarik Süresi
- 9 Weeks
- Mechanical Life
- 1,000,000 Cycles
- Differential Travel
- 0.016 (0.4mm)
- Actuator Type
- Round (Pin Plunger)
- Terminal Stili
- Quick Connect - 0.250 (6.3mm)
