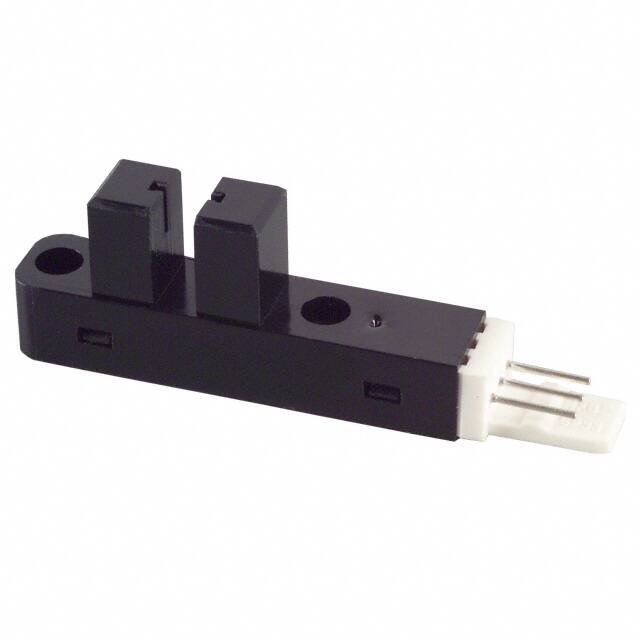

HOA7720-M22

Specifications

Number Of Elements

1

Yayın Yılı

1997

Montaj

Chassis Mount, Through Hole

RoHS Durumu

RoHS Compliant

Touchscreen

Infrared (IR)

Low Level Output Current

12.8mA

Output Current

12.8mA

Input Current

40mA

Operating Supply Current

40mA

Reach Svhc

Unknown

Kılıf / Paket

Module, Connector

Besleme Gerilimi

4.5V~5.5V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Optoelectronic Device Type

LOGIC OUTPUT SLOTTED SWITCH

Fall Time Typ

70 ns

Algılama Mesafesi

0.118 (3mm)

Output Configuration

Totem Pole, Inverted

Montaj Tipi

Chassis Mount

Genişlik

2.9972mm

Response Timemax

7e-8s

Kurşunsuz

Lead Free

Sensing Method

Through-Beam

Output Voltage

2.4V

Çalışma Sıcaklığı

-40°C~70°C TA

Rise Time

70ns

Power Dissipation

220mW

Parça Durumu

Obsolete

Pin Sayısı

3
