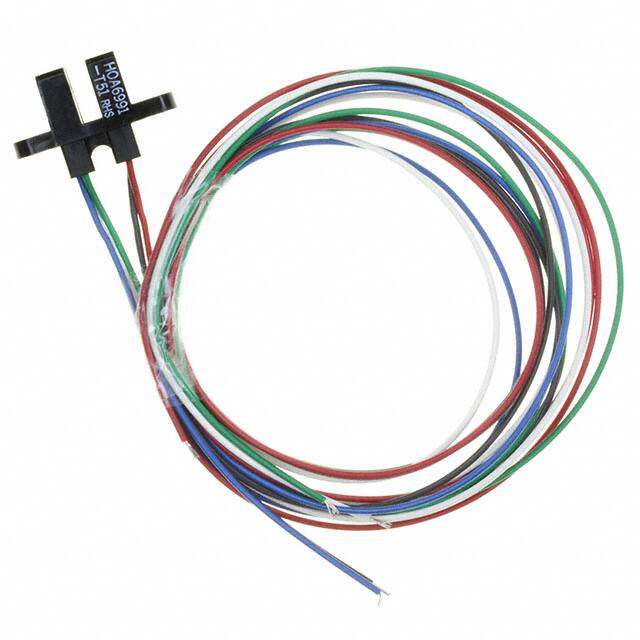

HOA6991-T51

Specifications

Reverse Voltage Dc

3V

Sensing Method

Through-Beam

Reverse Breakdown Voltage

3V

Output Configuration

NPN - Open Collector, Buffer

Algılama Mesafesi

0.125 (3.18mm)

Montaj Tipi

Chassis Mount

Number Of Channels

1

Genişlik

24.89mm

Housing Material

Polysulfone

Terminal

Lead Wire

High Level Output Current

100μA

Pin Sayısı

5

Operating Supply Voltage

12V

Output Voltage

400mV

Forward Voltage

1.6V

Çalışma Sıcaklığı

-40°C~70°C TA

Rise Time

70ns

Power Dissipation

100mW

Parça Durumu

Obsolete

Min. Çalışma Sıcaklığı

-40°C

Touchscreen

Infrared (IR)

Low Level Output Current

12.8mA

Number Of Elements

1

Yayın Yılı

1997

Current Supply

15mA

Montaj

Chassis Mount, Screw

RoHS Durumu

RoHS Compliant

Besleme Gerilimi

4.5V~12V

Response Time

70ns

Maks. Çalışma Sıcaklığı

70°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fall Time Typ

70 ns

Uzunluk

21.23mm

Yükseklik

11.05mm

Input Current

50mA

Forward Current

50mA

Propagation Delay

5 μs

Reach Svhc

Unknown

Operating Supply Current

15mA

Kılıf / Paket

Module, Pre-Wired
