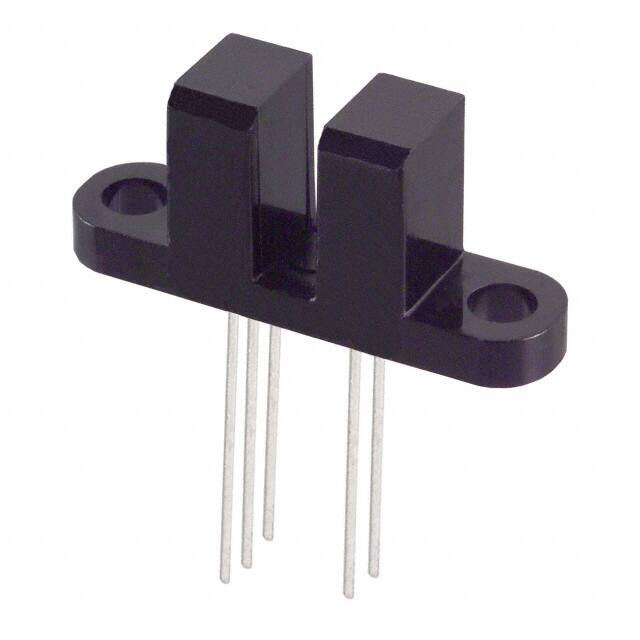

HOA6961-T51

Specifications

Fall Time Typ

70 ns

Nem Hassasiyeti (MSL)

1 (Unlimited)

Maks. Çalışma Sıcaklığı

70°C

Besleme Gerilimi

4.5V~12V

Response Time

<400ms

Fabrika Tedarik Süresi

14 Weeks

Operating Supply Current

15mA

Reach Svhc

Unknown

Collectoremitter Saturation Voltage

400mV

Kılıf / Paket

PCB Mount

Propagation Delay

5 μs

Forward Current

50mA

Input Current

50mA

Output Current

15mA

Low Level Output Current

12.8mA

RoHS Durumu

RoHS Compliant

Current Supply

15mA

Yayın Yılı

1997

Montaj

Through Hole

Number Of Elements

1

Operating Supply Voltage

12V

Pin Sayısı

4

Housing Material

Polysulfone

High Level Output Current

100μA

Parça Durumu

Obsolete

Min. Çalışma Sıcaklığı

-40°C

Forward Voltage

1.6V

Çalışma Sıcaklığı

-40°C~70°C TA

Rise Time

70ns

Power Dissipation

100mW

Output Voltage

35V

Sensing Method

Through-Beam

Kurşunsuz

Lead Free

Reverse Voltage Dc

3V

Number Of Channels

1

Montaj Tipi

Through Hole

Algılama Mesafesi

0.125 (3.18mm)

Output Configuration

NPN - Open Collector, Buffer

Reverse Breakdown Voltage

3V
