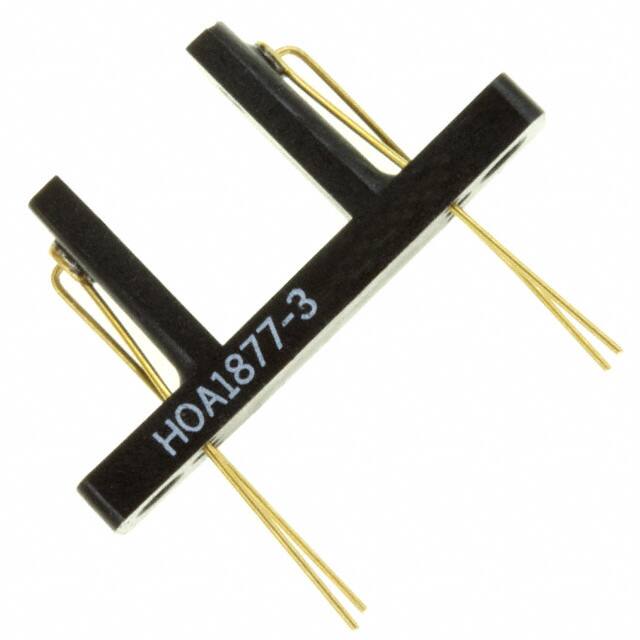

HOA1877-003

Specifications

Fonksiyon Sayısı

1

Ambalaj

Bulk

Yükseklik

15.88mm

Input Current

30mA

Collectoremitter Saturation Voltage

1.1V

Sensing Method

Through-Beam

Max Power Dissipation

75mW

Tip

Unamplified

Number Of Channels

1

Radyasyon Dayanımı

No

Housing Material

Polycarbonate

Pin Sayısı

4

Collector Emitter Voltage Vceo

15V

Output Voltage

15V

Power Dissipation

75mW

Rise Time

75μs

Çalışma Sıcaklığı

-55°C~100°C

Forward Voltage

1.6V

Lead Pitch

5.08mm

Nominal Gerilim

15V

Touchscreen

Infrared (IR)

Slot Widthnom

9.52mm

Row Spacing

17.78 mm

Collectoremitter Breakdown Voltage

15V

Dark Current

250nA

Max Output Current

30mA

Montaj

Screw, Through Hole

Yayın Yılı

1997

Voltage Rated Dc

15V

RoHS Durumu

RoHS Compliant

Response Time

75μs, 75μs

Kurşunsuz Kodu

yes

Onstate Collector Currentnom

1.5mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

31.75mm

Fall Time Typ

75 μs

Propagation Delay

75 ns

Forward Current

50mA

Kılıf / Paket

PCB Mount

Reach Svhc

No SVHC
