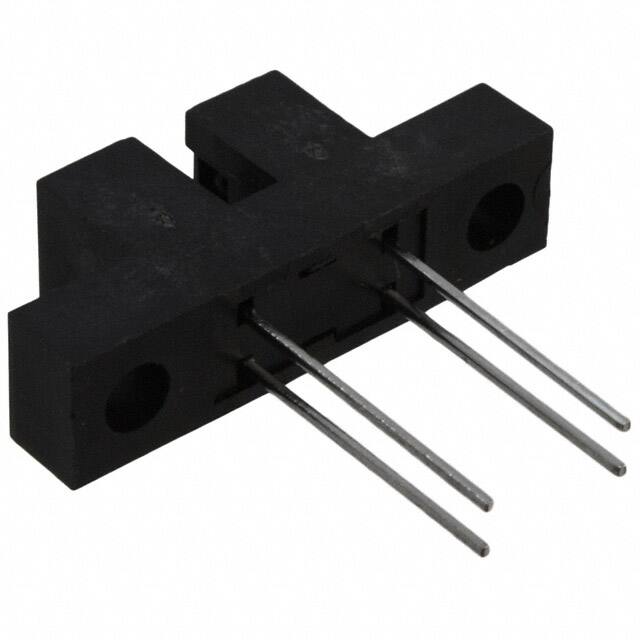

HOA1873-012

Specifications

Collectoremitter Breakdown Voltage

30V

Current Dc Forward If Max

50mA

Max Output Current

30mA

Number Of Elements

1

Dark Current

100nA

RoHS Durumu

RoHS Compliant

Montaj

Through Hole

Yayın Yılı

1997

Voltage Rated Dc

30V

Ambalaj

Bulk

Maks. Çalışma Sıcaklığı

85°C

Response Time

15μs

Uzunluk

25.4mm

Fall Time Typ

15 μs

Nem Hassasiyeti (MSL)

1 (Unlimited)

Input Current

20mA

Forward Current

50mA

Yükseklik

10.8mm

Fabrika Tedarik Süresi

14 Weeks

Kılıf / Paket

PCB Mount

Collectoremitter Saturation Voltage

400mV

Currentcollector Ic Max

30mA

Sensing Method

Through-Beam

Output Configuration

Phototransistor

Algılama Mesafesi

0.100 (2.54mm)

Reverse Breakdown Voltage

3V

Max Power Dissipation

100mW

Tip

Unamplified

Max Input Current

50mA

Genişlik

6.36mm

Montaj Tipi

Through Hole

Voltage Collector Emitter Breakdown Max

30V

Number Of Channels

1

Housing Material

Polyester

Collector Emitter Voltage Vceo

30V

Pin Sayısı

4

Power Dissipation

100mW

Forward Voltage

1.6V

Çalışma Sıcaklığı

-40°C~85°C

Rise Time

15μs
