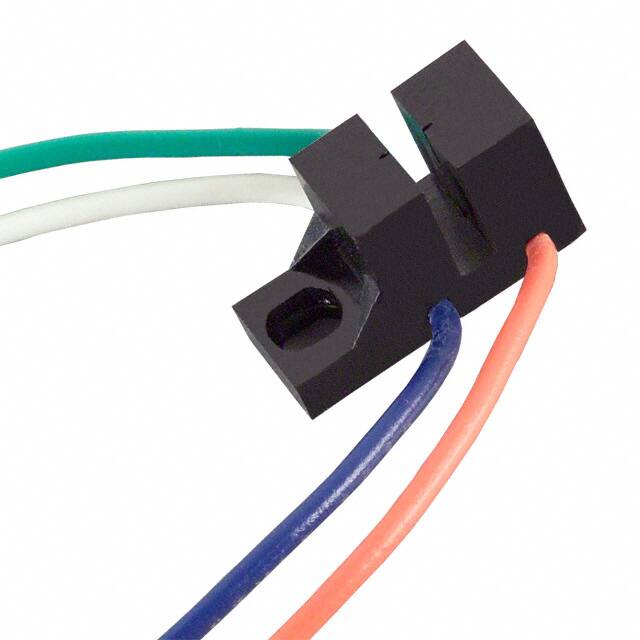

HOA1870-031

Specifications

Pin Sayısı

4

Collector Emitter Voltage Vceo

30V

Terminal

Lead Wire

Radyasyon Dayanımı

No

Housing Material

Polycarbonate

Max Collector Current

30mA

Parça Durumu

Obsolete

Output Voltage

30V

Power Dissipation

100mW

Forward Voltage

1.6V

Çalışma Sıcaklığı

-40°C~85°C

Rise Time

15μs

Kurşunsuz

Lead Free

Sensing Method

Through-Beam

Reverse Voltage Dc

3V

Genişlik

12.7mm

Montaj Tipi

Chassis Mount

Reverse Breakdown Voltage

3V

Tip

Unamplified

Output Configuration

Phototransistor

Algılama Mesafesi

0.070 (1.78mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

13.46mm

Fall Time Typ

15 μs

Response Time

15μs, 15μs

Ambalaj

Bulk

Onstate Collector Currentnom

0.3mA

Kılıf / Paket

Module, Pre-Wired

Collectoremitter Saturation Voltage

400mV

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

4 Weeks

Yükseklik

9.02mm

Output Current

30mA

Input Current

50mA

Forward Current

50mA

Slot Widthnom

1.78mm

Collectoremitter Breakdown Voltage

30V

Touchscreen

Infrared (IR)

Montaj

Chassis Mount, Screw

Yayın Yılı

1997
