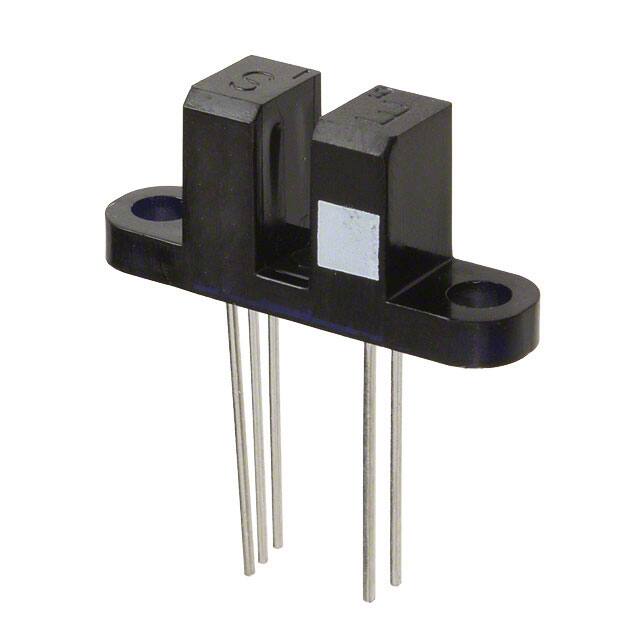

HOA0963-T51

Specifications

Sensing Method

Through-Beam

Operating Supply Voltage

10V

RoHS Durumu

RoHS Compliant

Number Of Elements

1

Reverse Breakdown Voltage

3V

Min Supply Voltage Dc

4.5V

Housing Material

Polysulfone

Kılıf / Paket

PCB Mount

Low Level Output Current

15mA

Çalışma Sıcaklığı

-40°C~70°C TA

Collectoremitter Saturation Voltage

400mV

Maks. Çalışma Sıcaklığı

70°C

Response Time

60ns, 15ns

Parça Durumu

Obsolete

Current Supply

12mA

Forward Voltage

1.6V

Output Configuration

NPN - Open Collector, Inverted

Besleme Gerilimi

4.5V~10V

Operating Supply Current

12mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fall Time Typ

15 ns

Algılama Mesafesi

0.125 (3.18mm)

Forward Current

50mA

Power Dissipation

100mW

Yayın Yılı

1997

Number Of Channels

1

Rise Time

60ns

Reach Svhc

No SVHC

Max Supply Voltage Dc

10V

High Level Output Current

12mA

Min. Çalışma Sıcaklığı

-40°C

Propagation Delay

5 μs

Pin Sayısı

4

Montaj

Screw, Through Hole

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

14 Weeks

Reverse Voltage Dc

3V
