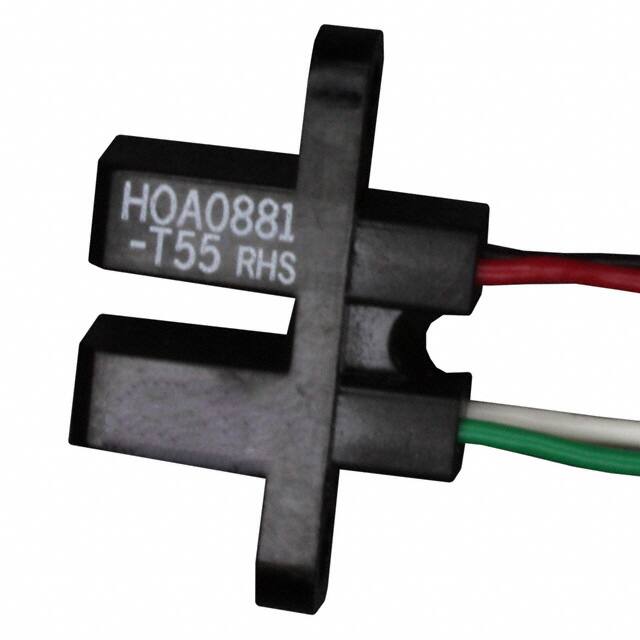

HOA0881-T55

Specifications

Max Collector Current

30mA

Number Of Channels

1

Rise Time

15μs

Voltage Collector Emitter Breakdown Max

30V

Input Current

10mA

Min. Çalışma Sıcaklığı

-40°C

Pin Sayısı

4

Collectoremitter Breakdown Voltage

30V

Dark Current

100nA

Fabrika Tedarik Süresi

14 Weeks

Montaj

Chassis Mount, Screw, Wire

Currentcollector Ic Max

30mA

Montaj Tipi

Chassis Mount, Wire Lead

Sensing Method

Through-Beam

Housing Material

Polysulfone

Current Dc Forward If Max

50mA

Kılıf / Paket

Module, Pre-Wired

Collector Emitter Voltage Vceo

30V

RoHS Durumu

RoHS Compliant

Reverse Breakdown Voltage

3V

Number Of Elements

1

Forward Voltage

1.6V

Output Configuration

Transistor

Collectoremitter Saturation Voltage

400mV

Çalışma Sıcaklığı

-40°C~85°C

Parça Durumu

Obsolete

Response Time

15μs

Maks. Çalışma Sıcaklığı

85°C

Yayın Yılı

1997

Output Voltage

30V

Tip

Unamplified

Fall Time Typ

15 μs

Ambalaj

Bulk

Algılama Mesafesi

0.125 (3.18mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Power Dissipation

100mW

Forward Current

50mA
