Honeywell Sensing and Productivity Solutions

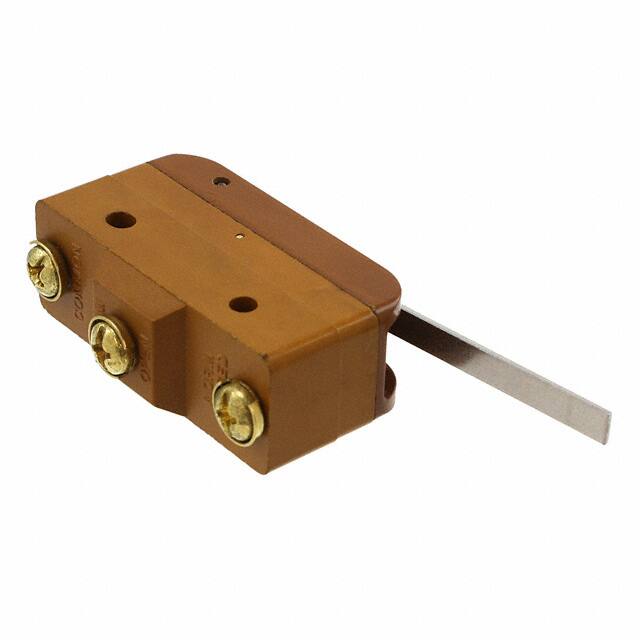

BZ-RW84431-A2
Snap Action Switches
In StockRoHS: Compliant
Volume pricing
- 1+ pcs$11.03
- 10+ pcs$10.41
- 100+ pcs$9.82
- 500+ pcs$9.26
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Terminal Stili
- Screw Terminal
- Montaj
- Chassis Mount, Screw
- Current Rating Amps
- 15A AC
- Actuator Type
- Lever, Straight
- ECCN Kodu
- EAR99
- Ratings
- IP64
- Yayın Yılı
- 2001
- Actuator Travel
- 3.16 mm
- Body Height
- 29.21mm
- Seri
- BZ
- Operating Force
- 283gf
- Reach Svhc
- No SVHC
- Terminal Kaplaması
- Matte Tin (Sn)
- Max Voltage Rating Ac
- 480V
- Differential Travel
- 0.015 (0.38mm)
- Fabrika Tedarik Süresi
- 12 Weeks
- Çalışma Sıcaklığı
- -55°C~85°C
- Weight
- 3.401kg
- Parça Durumu
- Active
- Overtravel
- 0.125 (3.2mm)
- Akım Değeri
- 15A
- Contact Materials
- Silver
- Depth
- 17.45mm
- JESD-609 Kodu
- e3
- Housing Material
- Phenolic
- Terminal
- Screw
- RoHS Durumu
- RoHS Compliant
- Orientation
- Straight
- Max Current Rating
- 16A
- Circuit
- SPDT
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Uzunluk
- 75.13mm
- Genişlik
- 28.2mm
- Voltage Rated Ac
- 125V
- Mechanical Life
- 20,000,000 Cycles
- Switch Function
- On-Mom
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Operating Position
- 0.750 (19.1mm)
- Contact Current Rating
- 15A
- Kurşunsuz Kodu
- yes
