Volume pricing
- 1+ pcs$35.44
- 10+ pcs$33.43
- 100+ pcs$31.54
- 500+ pcs$29.76
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

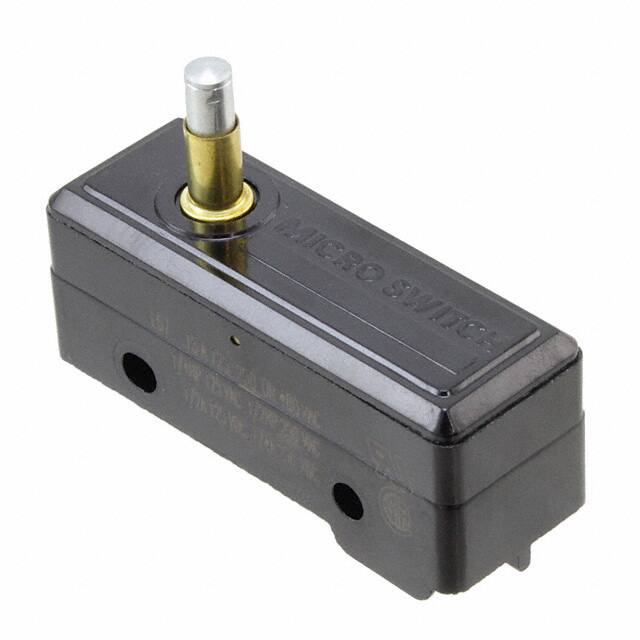

Specifications
- Terminal Kaplaması
- Matte Tin (Sn)
- Parça Durumu
- Active
- Özellikler
- Steel Plunger
- Çalışma Sıcaklığı
- -55°C~85°C
- Body Height
- 21.44mm
- Contact Dc Max Rating R Load
- .5A@125VDC
- Voltage Rated Dc
- 125V
- Montaj
- Chassis Mount, Screw
- Current Rating Amps
- 15A AC 500mA DC
- ECCN Kodu
- EAR99
- Terminal Stili
- Solder Lug
- Montaj Tipi
- Chassis Mount
- Voltage Rated Ac
- 125V
- Kurşunsuz Kodu
- yes
- Ambalaj
- Bulk
- Contact Current Rating
- 15A
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Actuator Material
- Steel
- Uzunluk
- 49.28mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal
- Solder
- Orientation
- Straight
- RoHS Durumu
- RoHS Compliant
- Contact Materials
- Silver
- Housing Material
- Phenolic
- JESD-609 Kodu
- e3
- HTS Kodu
- 8536.50.90.55
- Overtravel
- 0.025 (0.6mm)
- Fabrika Tedarik Süresi
- 13 Weeks
- Max Voltage Rating Ac
- 480V
- Weight
- 3.401kg
- Release Force
- 113gf
- Operating Force
- 198 ~ 269gf
- Seri
- BZ
- Max Voltage Rating Dc
- 250V
- Pretravelmax
- 0.3 mm
- Yayın Yılı
- 2000
- Actuator Type
- Overtravel Plunger
- Pretravel
- 0.012 (0.3mm)
- Contact Ac Max Rating R Load
- 15A@480VAC
