Volume pricing
- 1+ pcs$128.64
- 10+ pcs$121.36
- 100+ pcs$114.49
- 500+ pcs$108.01
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Body Height
- 45.57mm
- Current Rating Amps
- 15A AC 500mA DC
- Akım Değeri
- 15A
- Max Voltage Rating Dc
- 250V
- Housing Material
- Zinc
- Operating Force
- 283 ~ 567gf
- HTS Kodu
- 8536.50.70.00
- Actuator Type
- Lever, Roller
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Voltage Rated Ac
- 125V
- Kurşunsuz Kodu
- yes
- Differential Travel
- 0.006 (0.15mm)
- ECCN Kodu
- EAR99
- Seri
- BZG

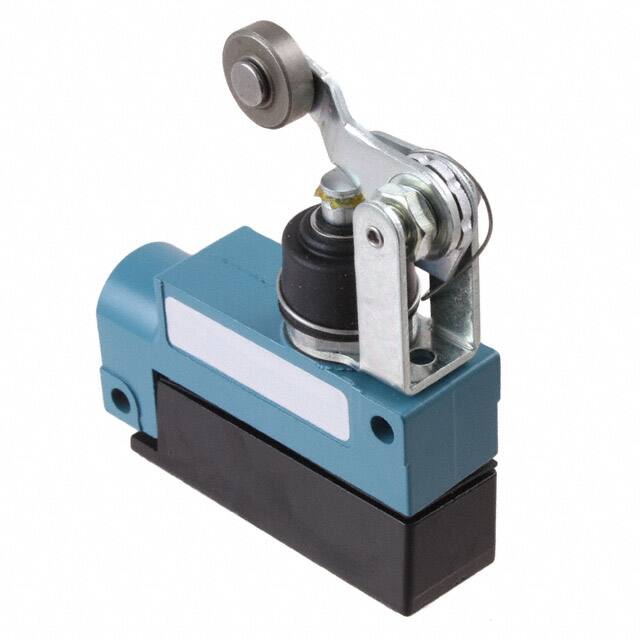

- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Pretravelmax
- 4.78 mm
- Pozisyon Sayısı
- 2
- Fabrika Tedarik Süresi
- 2 Weeks
- Switch Function
- On-Mom
- Yayın Yılı
- 2001
- Depth
- 40.1mm
- Reach Svhc
- Unknown
- Voltage Rated Dc
- 125V
- Çalışma Sıcaklığı
- -32°C~71°C
- Terminal
- Screw
- Circuit
- SPDT
- Parça Durumu
- Not For New Designs
- Release Force
- 113gf
- Number Of Poles
- 1
- Uzunluk
- 25.9mm
- RoHS Durumu
- RoHS Compliant
- Overtravel
- 0.219 (5.6mm)
- Contact Voltageacmax
- 480V
- Montaj
- Chassis Mount, Screw
- Özellikler
- Actuator Seal Boot
- Max Current Rating
- 15A
- Contact Currentdcmax
- 0.5A
- Genişlik
- 99.1mm
- Pretravel
- 0.188 (4.8mm)
- Ambalaj
- Bulk
