Volume pricing
- 1+ pcs$14.25
- 10+ pcs$13.45
- 100+ pcs$12.69
- 500+ pcs$11.97
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

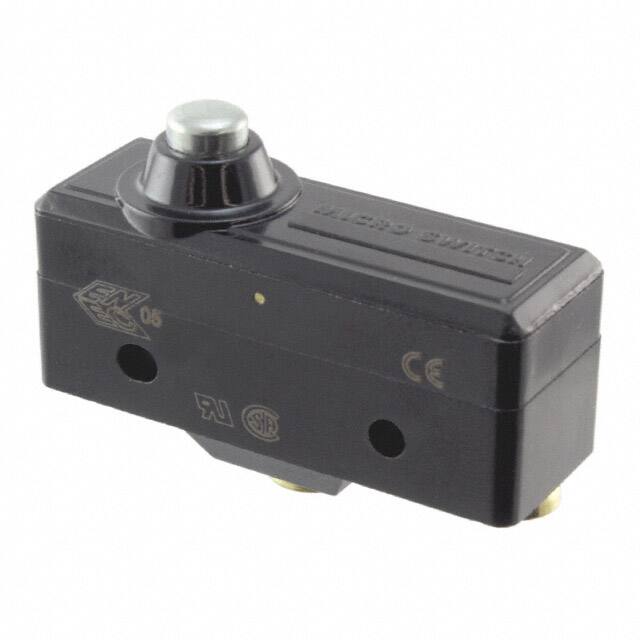

Specifications
- Mechanical Life
- 20,000,000 Cycles
- Material
- Plastic
- Fabrika Tedarik Süresi
- 10 Weeks
- Parça Durumu
- Active
- Yayın Yılı
- 2001
- Terminal
- Screw
- Özellikler
- Steel Plunger
- Current Rating Amps
- 15A AC 500mA DC
- Actuator Type
- Round (Pin Plunger)
- Overtravel
- 0.060 (1.5mm)
- Contact Ac Max Rating R Load
- 15A@480VAC
- RoHS Durumu
- RoHS Compliant
- ECCN Kodu
- EAR99
- Kurşunsuz Kodu
- yes
- Seri
- BZ
- Max Current Rating
- 16A
- Depth
- 17.45mm
- Max Voltage Rating Ac
- 480V
- Uzunluk
- 49.28mm
- Voltage Rated Dc
- 125V
- Actuator Material
- Steel
- JESD-609 Kodu
- e3
- Ambalaj
- Bulk
- Orientation
- Straight
- Housing Material
- Phenolic
- Switch Function
- On-Mom
- Çalışma Sıcaklığı
- -55°C~85°C
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Akım Değeri
- 15A
- Operating Force
- 397 ~ 567gf
- Pretravelmax
- 0.51 mm
- Montaj
- Chassis Mount, Screw
- Voltage Rated Ac
- 125V
- Terminal Stili
- Screw Terminal
- Circuit
- SPDT
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal Kaplaması
- Matte Tin (Sn)
- Differential Travel
- 0.003 (0.075mm)
- Contact Currentdcmax
- 0.5A
- Pretravel
- 0.020 (0.5mm)
