Specifications
- Reach Svhc
- No SVHC
- RoHS Durumu
- RoHS Compliant
- ECCN Kodu
- EAR99
- Kurşunsuz Kodu
- yes
- Overtravel
- 0.060 (1.5mm)
- Contact Ac Max Rating R Load
- 15A@480VAC
- Max Voltage Rating Ac
- 480V
- Max Current Rating
- 15A
- Depth
- 17.45mm
- Seri
- BZ
- Voltage Rated Dc
- 125V
- Uzunluk
- 49.28mm
- Actuator Material
- Steel
- Housing Material
- Phenolic
- Orientation
- Straight
- JESD-609 Kodu
- e3
- Ambalaj
- Bulk
- Parça Durumu
- Active
- Mechanical Life
- 20,000,000 Cycles
- Fabrika Tedarik Süresi
- 13 Weeks
- Material
- Plastic
- Yayın Yılı
- 2001
- Terminal
- Screw
- Current Rating Amps
- 15A AC 1A DC

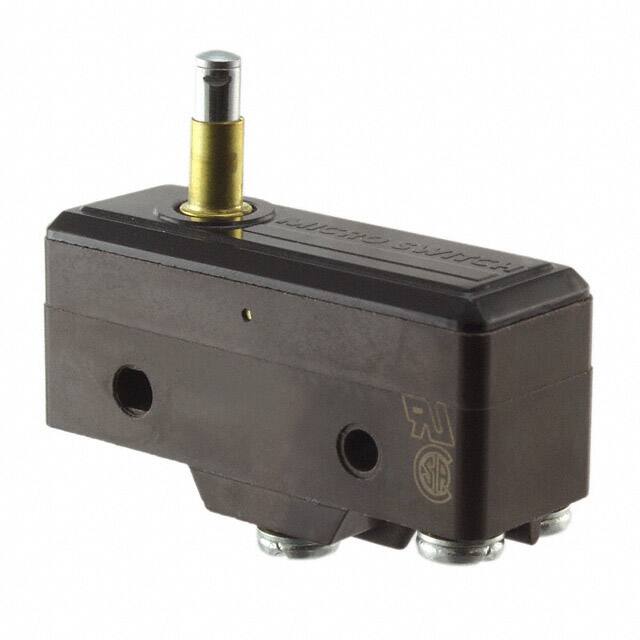

- Actuator Type
- Round (Pin Plunger)
- Differential Travel
- 0.005 (0.13mm)
- Contact Currentdcmax
- 1A
- Terminal Kaplaması
- Matte Tin (Sn)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Max Voltage Rating Dc
- 250V
- Pretravel
- 0.025 (0.65mm)
- Montaj Tipi
- Chassis Mount
- Body Height
- 26.77mm
- Contact Dc Max Rating R Load
- 1A@125VDC
- Weight
- 3.401kg
- Operating Position
- 1.110 (28.2mm)
- Contact Materials
- Silver
- Release Force
- 113gf
- HTS Kodu
- 8536.50.70.00
- Switch Function
- On-Mom
