Honeywell Sensing and Productivity Solutions

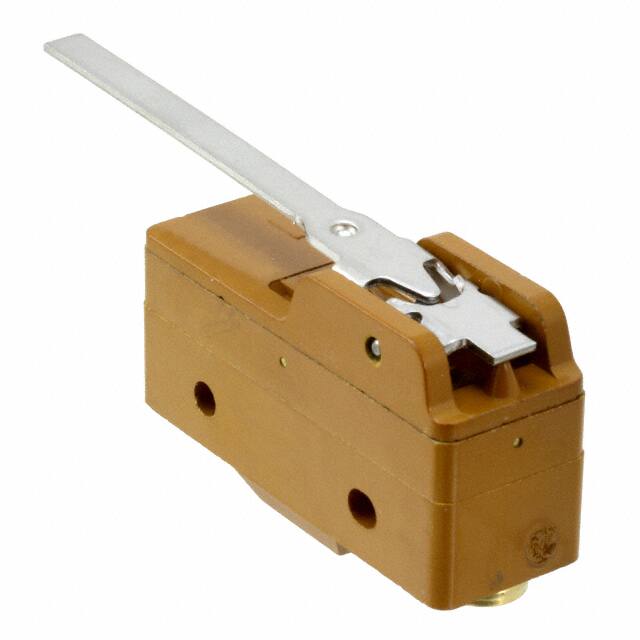

BZ-2RW8405-A2
Snap Action Switches
In StockRoHS: Compliant
Volume pricing
- 1+ pcs$26.71
- 10+ pcs$25.20
- 100+ pcs$23.78
- 500+ pcs$22.43
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Body Breadth
- 17.45 mm
- Yayın Yılı
- 2001
- Terminal
- Screw
- Parça Durumu
- Active
- Mechanical Life
- 20,000,000 Cycles
- Material
- Plastic
- Fabrika Tedarik Süresi
- 9 Weeks
- Actuator Type
- Lever, Straight
- Current Rating Amps
- 15A AC 500mA DC
- Max Voltage Rating Ac
- 480V
- Seri
- BZ
- Actuator Travel
- 13.89 mm
- Kurşunsuz Kodu
- yes
- ECCN Kodu
- EAR99
- RoHS Durumu
- RoHS Compliant
- Reach Svhc
- Unknown
- Overtravel
- 0.219 (5.6mm)
- Contact Ac Max Rating R Load
- 15A@480VAC
- Housing Material
- Phenolic
- Body Length Or Diameter
- 49.28mm
- Ambalaj
- Bulk
- JESD-609 Kodu
- e3
- Orientation
- Straight
- Actuator Length
- 635mm
- Voltage Rated Dc
- 125V
- Contact Current Rating
- 15A
- Switch Function
- On-Mom
- Çalışma Sıcaklığı
- -55°C~85°C
- Terminal Stili
- Screw Terminal
- Circuit
- SPDT
- Voltage Rated Ac
- 125V
- Operating Force
- 28gf
- Montaj
- Chassis Mount, Screw
- Pretravelmax
- 8.33 mm
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Akım Değeri
- 15A
- Max Voltage Rating Dc
- 250V
- Pretravel
- 0.328 (8.3mm)
- Differential Travel
- 0.050 (1.3mm)
- Contact Currentdcmax
- 0.5A
