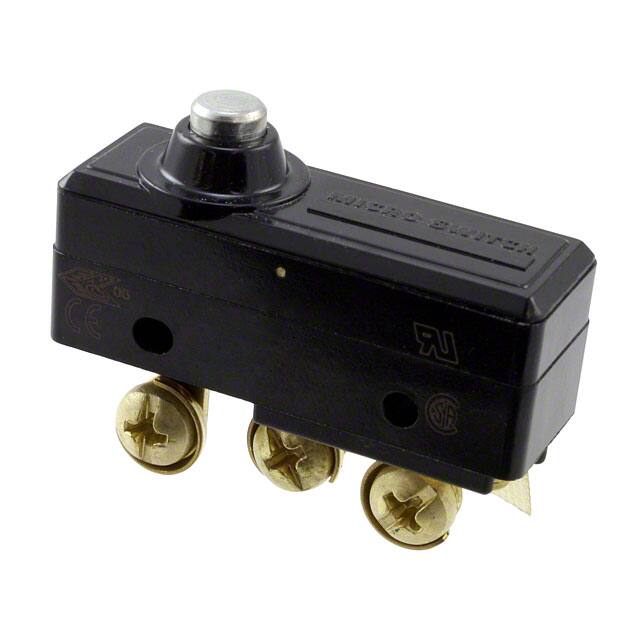

Specifications
- Circuit
- SPDT
- Terminal Stili
- Screw Terminal
- Actuator Type
- Round (Pin Plunger)
- Voltage Rated Ac
- 125V
- Pretravelmax
- 0.38 mm
- Montaj
- Chassis Mount, Screw
- Operating Force
- 255 ~ 368gf
- Current Rating Amps
- 15A AC 500mA DC
- Özellikler
- Steel Plunger
- Akım Değeri
- 15A
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Terminal
- Screw
- Yayın Yılı
- 1995
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 9 Weeks
- Çalışma Sıcaklığı
- -55°C~85°C
- Material
- Plastic
- Switch Function
- On-Mom
- Mechanical Life
- 20,000,000 Cycles
- Housing Material
- Phenolic
- Release Force
- 113gf
- HTS Kodu
- 8536.50.70.00
- Orientation
- Straight
- Ambalaj
- Bulk
- Weight
- 286g
- Actuator Material
- Steel
- Operating Position
- 0.835 (21.2mm)
- Montaj Tipi
- Chassis Mount
- Body Height
- 20.83mm
- Voltage Rated Dc
- 125V
- Uzunluk
- 49.28mm
- Contact Dc Max Rating R Load
- .5A@125VDC
- Contact Materials
- Silver
- Max Voltage Rating Ac
- 600V
- Max Voltage Rating Dc
- 250V
- Max Current Rating
- 16A
- Depth
- 17.45mm
- Seri
- BZ
- Pretravel
- 0.015 (0.4mm)
- Contact Currentdcmax
- 0.5A
