Honeywell Sensing and Productivity Solutions

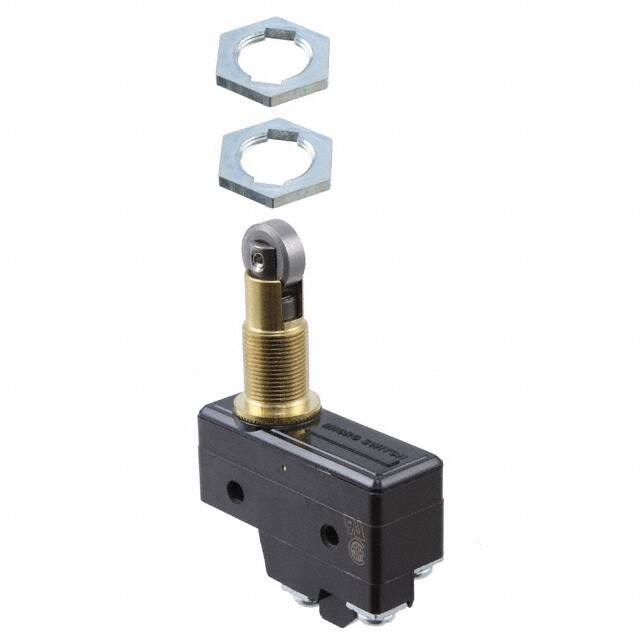

BZ-2AQ1842-PC2
Snap Action Switches
In StockRoHS: Compliant
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Contact Materials
- Silver
- Weight
- 3.401kg
- Operating Position
- 1.313 (33.4mm)
- Montaj Tipi
- Panel Mount
- Body Height
- 28.7mm
- Contact Dc Max Rating R Load
- 1A@125VDC
- HTS Kodu
- 8536.50.70.00
- Release Force
- 113gf
- Throw Configuration
- DPDT
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal Kaplaması
- Matte Tin (Sn)
- Contact Currentdcmax
- 1A
- Differential Travel
- 0.001 (0.025mm)
- Pretravel
- 0.025 (0.65mm)
- Max Voltage Rating Dc
- 250V
- Akım Değeri
- 1A
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Pretravelmax
- 0.64 mm
- Montaj
- Panel, Screw
- Operating Force
- 397 ~ 680gf
- Voltage Rated Ac
- 125V
- Circuit
- SPDT (DB/DM)
- Terminal Stili
- Screw Terminal
- Çalışma Sıcaklığı
- -55°C~85°C
- Switch Function
- On-Mom
- Contact Current Rating
- 15A
- Actuator Material
- Stainless Steel
- Voltage Rated Dc
- 125V
- Uzunluk
- 49.28mm
- Orientation
- Straight
- Ambalaj
- Bulk
- JESD-609 Kodu
- e3
- Housing Material
- Phenolic
- Contact Ac Max Rating R Load
- 15A@480VAC
- Overtravel
- 0.141 (3.6mm)
- Reach Svhc
- No SVHC
- RoHS Durumu
- RoHS Compliant
- ECCN Kodu
- EAR99
- Kurşunsuz Kodu
- yes
- Max Current Rating
- 15A
