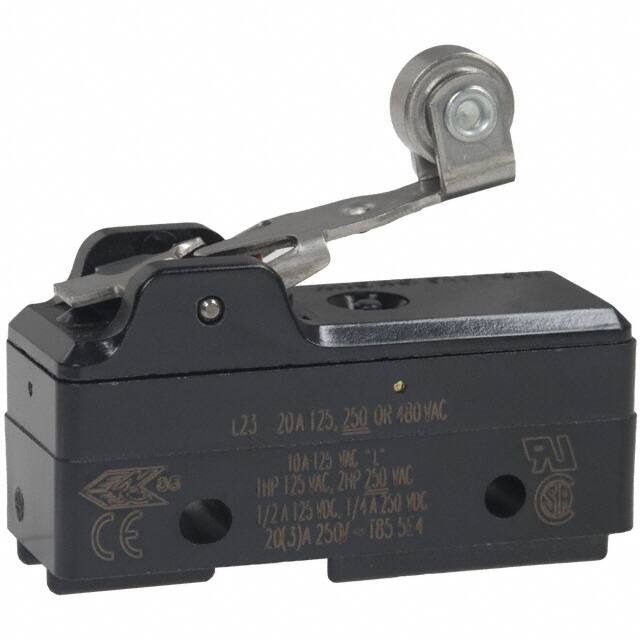

Specifications
- Terminal Stili
- Solder Lug
- Contact Ac Max Rating R Load
- 20A@480VAC
- Actuator Type
- Lever, Roller
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Operating Position
- 1.176 (29.9mm)
- Akım Değeri
- 20A
- Depth
- 17.45mm
- Uzunluk
- 49.28mm
- Pretravel
- 0.250 (6.35mm)
- Body Height
- 27.3mm
- Max Current Rating
- 20A
- Circuit
- SPDT
- Yayın Yılı
- 2001
- JESD-609 Kodu
- e3
- Max Voltage Rating Dc
- 250V
- Terminal
- Solder
- Operating Force
- 170gf
- Housing Material
- Phenolic
- Pretravelmax
- 6.35 mm
- RoHS Durumu
- RoHS Compliant
- Actuator Material
- Stainless Steel
- Max Voltage Rating Ac
- 480V
- Montaj
- Chassis Mount, Screw, Through Hole
- Parça Durumu
- Active
- ECCN Kodu
- EAR99
- Kurşunsuz Kodu
- yes
- Differential Travel
- 0.045 (1.1mm)
- Reach Svhc
- Unknown
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Release Force
- 43gf
- Switch Function
- On-Mom
- Contact Dc Max Rating R Load
- .5A@125VDC
- Terminal Kaplaması
- Matte Tin (Sn)
- Mechanical Life
- 20,000,000 Cycles
- HTS Kodu
- 8536.50.70.00
- Voltage Rated Ac
- 125V
- Weight
- 286g
- Overtravel
- 0.030 (0.76mm)
- Voltage Rated Dc
- 125V
- Material
- Plastic
