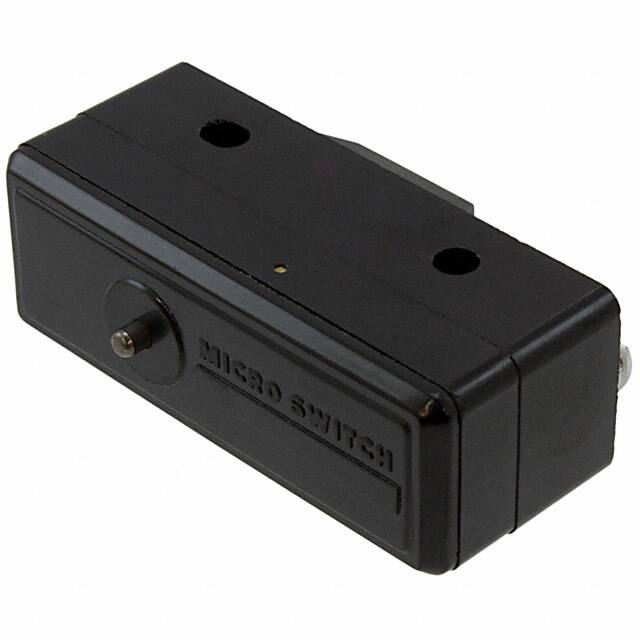

Specifications
- Body Height
- 24.13mm
- Uzunluk
- 49.28mm
- Pretravel
- 0.050 (1.27mm)
- Depth
- 17.45mm
- Circuit
- SPDT
- Max Current Rating
- 20A
- Operating Position
- 0.640 (16.3mm)
- Actuator Travel
- 1.52 mm
- Contact Ac Max Rating R Load
- 20A@480VAC
- Actuator Type
- Round (Pin Plunger)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal Stili
- Screw Terminal
- Akım Değeri
- 20A
- Kurşunsuz Kodu
- yes
- ECCN Kodu
- EAR99
- Parça Durumu
- Active
- Montaj
- Chassis Mount, Screw
- Max Voltage Rating Ac
- 480V
- Reach Svhc
- Unknown
- Differential Travel
- 0.002 (0.05mm)
- Operating Force
- 397 ~ 624gf
- Terminal
- Screw
- Max Voltage Rating Dc
- 250V
- Yayın Yılı
- 2015
- JESD-609 Kodu
- e3
- Pretravelmax
- 1.27 mm
- RoHS Durumu
- RoHS Compliant
- Housing Material
- Phenolic
- Material
- Plastic
- Voltage Rated Dc
- 125V
- Montaj Tipi
- Chassis Mount
- Overtravel
- 0.010 (0.25mm)
- Weight
- 286g
- Contact Dc Max Rating R Load
- .5A@125VDC
- Switch Function
- On-Mom
- Release Force
- 283gf
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Voltage Rated Ac
- 125V
- HTS Kodu
- 8536.50.70.00
- Mechanical Life
- 20,000,000 Cycles
