Volume pricing
- 1+ pcs$37.18
- 10+ pcs$35.08
- 100+ pcs$33.09
- 500+ pcs$31.22
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Akım Değeri
- 20A
- Operating Position
- 0.859 (21.8mm)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Actuator Type
- Overtravel Plunger
- Contact Ac Max Rating R Load
- 20A@480VAC
- Terminal Stili
- Screw Terminal
- Circuit
- SPDT
- Max Current Rating
- 20A
- Body Height
- 23.62mm
- Pretravel
- 0.050 (1.27mm)
- Uzunluk
- 49.28mm
- Depth
- 17.45mm
- Actuator Material
- Steel
- RoHS Durumu
- RoHS Compliant
- Pretravelmax
- 1.27 mm
- Housing Material
- Phenolic
- Operating Force
- 397 ~ 624gf
- Terminal
- Screw
- Max Voltage Rating Dc
- 250V
- JESD-609 Kodu
- e3
- Yayın Yılı
- 2015
- Differential Travel
- 0.002 (0.05mm)
- Kurşunsuz Kodu
- yes
- ECCN Kodu
- EAR99
- Montaj
- Panel, Screw
- Max Voltage Rating Ac
- 480V
- Parça Durumu
- Active
- Voltage Rated Ac
- 125V
- HTS Kodu
- 8536.50.70.00
- Mechanical Life
- 20,000,000 Cycles
- Terminal Kaplaması
- Matte Tin (Sn)
- Contact Dc Max Rating R Load
- .5A@125VDC
- Switch Function
- On-Mom
- Release Force
- 283gf
- Switch Type

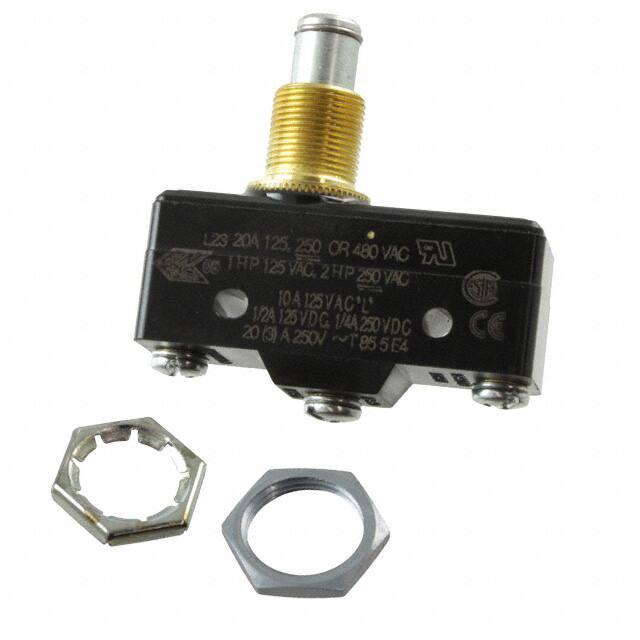

- SNAP ACTING/LIMIT SWITCH
- Montaj Tipi
- Panel Mount
- Material
- Plastic
- Voltage Rated Dc
- 125V
- Overtravel
- 0.219 (5.6mm)
- Weight
- 286g
