Honeywell Sensing and Productivity Solutions
BA-1RV5435246-A2

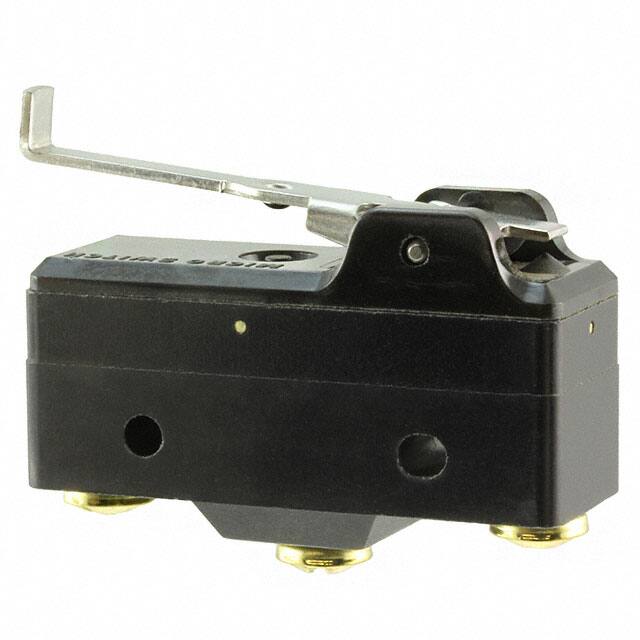

Snap Action Switches
In StockRoHS: Compliant
Volume pricing
- 1+ pcs$23.40
- 10+ pcs$22.07
- 100+ pcs$20.82
- 500+ pcs$19.64
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Actuator Travel
- 8.51 mm
- Contact Ac Max Rating R Load
- 15A@480VAC
- Actuator Type
- Lever, Formed
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Release Force
- 14gf
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Terminal Stili
- Screw Terminal
- Operating Position
- 0.875 (22.2mm)
- Switch Function
- On-Mom
- HTS Kodu
- 8536.50.70.00
- Akım Değeri
- 15A
- Mechanical Life
- 20,000,000 Cycles
- Terminal Kaplaması
- Matte Tin (Sn)
- Voltage Rated Ac
- 125V
- Uzunluk
- 51.56mm
- Pretravel
- 0.275 (7.0mm)
- Sealing
- CORROSION PROOF
- Depth
- 17.45mm
- Body Height
- 30.01mm
- Circuit
- SPDT
- Max Current Rating
- 16A
- Weight
- 286g
- Material
- Plastic
- Montaj Tipi
- Chassis Mount
- Overtravel
- 0.060 (1.5mm)
- JESD-609 Kodu
- e3
- Yayın Yılı
- 2001
- Operating Force
- 42gf
- Terminal
- Screw
- Contact Materials
- Cadmium, Silver
- Current Rating Amps
- 15A AC
- RoHS Durumu
- RoHS Compliant
- Pretravelmax
- 6.99 mm
- Housing Material
- Phenolic
- Seri
- BA
- Actuator Length
- 386mm
- ECCN Kodu
- EAR99
- Parça Durumu
- Active
- Max Voltage Rating Ac
- 480V
- Montaj
- Chassis Mount, Panel, Screw
