Volume pricing
- 1+ pcs$197.35
- 10+ pcs$186.18
- 100+ pcs$175.64
- 500+ pcs$165.70
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

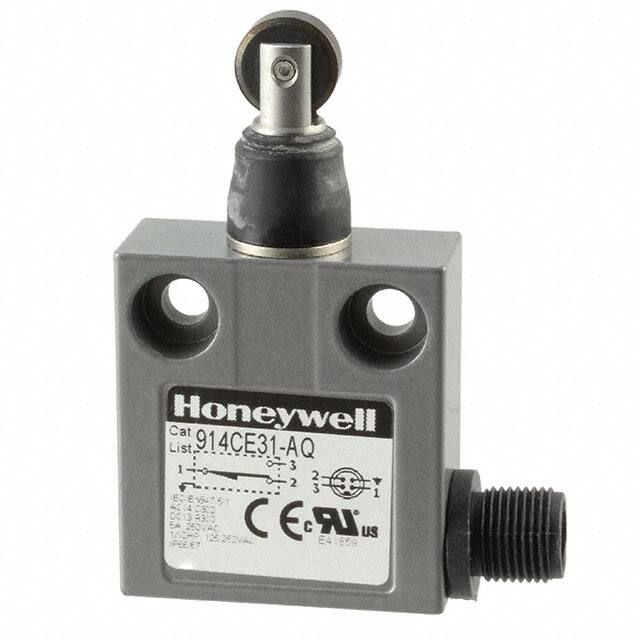

Specifications
- Çalışma Sıcaklığı
- 0°C~105°C
- Actuator Type
- Roller Plunger
- Genişlik
- 16mm
- Montaj
- Chassis Mount, Screw
- Akım Değeri
- 3A
- Ratings
- Dust Tight, IP66, Water Resistant
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Contact Ac Max Rating R Load
- 5A@250VAC
- Ingress Protection
- IP66 - Dust Tight, Water Resistant
- Housing Material
- Zinc
- Release Force
- 450gf
- Operating Force
- 1785gf
- Voltage Rated Ac
- 125V
- Uzunluk
- 40.01mm
- Depth
- 16mm
- Contact Currentacmax
- 5A
- Max Voltage Rating Ac
- 250V
- Fabrika Tedarik Süresi
- 15 Weeks
- Pretravel
- 0.071 (1.8mm)
- Switch Function
- On-Mom
- Pretravelmax
- 1.8 mm
- Overtravel
- 0.118 (3.0mm)
- Yayın Yılı
- 2015
- Circuit
- SPDT
- Current Rating Amps
- 3A AC
- Ambalaj
- Bulk
- ECCN Kodu
- EAR99
- Pin Sayısı
- 4
- Terminal Stili
- Connector
- Parça Durumu
- Active
- Montaj Tipi
- Chassis Mount
- HTS Kodu
- 8536.50.70.00
- Onay Kuruluşu
- CE, CSA, UL
- Kurşunsuz Kodu
- yes
- RoHS Durumu
- RoHS Compliant
- Orientation
- Straight
- Mechanical Life
- 10,000,000 Cycles
- Operating Position
- 1.354 (34.4mm)
- Differential Travel
- 0.004 (0.1mm)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
